PT100 Temperature Sensor for Air Oil Water Temperature Measuring Sensor CE
Product Description
Can convert all inputs to 4-20 mA
Input: thermocouples, RTD, resistance or voltage
Configuration directly via PDA or PC
Build-in cold junction compensation
Available with screw-in temperature probe
PCT380 is a head mount Temperature Transmitter with a single input. The single input accepts thermocouples, RTD, resistance or voltage source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA output for transmission to your system.
About Us:Input: thermocouples, RTD, resistance or voltage
Configuration directly via PDA or PC
Build-in cold junction compensation
Available with screw-in temperature probe
PCT380 is a head mount Temperature Transmitter with a single input. The single input accepts thermocouples, RTD, resistance or voltage source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA output for transmission to your system.
| Main parameters | |||||
| Accuracy | ≤0.1%F.S. | ||||
| Power supply | 12-40V | ||||
| Signal input | RTD TC resistance mV | ||||
| Signal output | 4-20mA | 1-5V(customized) | ||||
| Digital communication | Hart protocol | ||||
| Response time | ≤1s | ||||
| Operating temp. | -40ºC-85ºC | ||||
| Ingress protection | 4g^2-150Hz | ||||
| Cold junction compensation | Build-in | ||||
| Configuration | PAD or PC | ||||
| RTD temperature probes | |||||
| Description | Measuring range ºC | Minimum measuring range | Connection type | ||
| PT100 | -200 | 850 | 10K | Three-wire | |
| Cu50 | -50 | 150 | 10K | Three-wire | |
| Thermocouples | |||||
| Description | Measuring range ºC | Minimum measuring range | Connection type | ||
| B | 400 | 1820 | 500K | Two-wire | |
| E | -100 | 1000 | 50K | Two-wire | |
| J | -100 | 1200 | 50K | Two-wire | |
| K | -180 | 1372 | 50K | Two-wire | |
| N | -180 | 1300 | 50K | Two-wire | |
| R | -50 | 1760 | 500K | Two-wire | |
| S | -500 | 1760 | 500K | Two-wire | |
| T | -200 | 400 | 50K | Two-wire | |
| RTD temperature probes | |||||
| Description | Measuring range Ω | Minimum measuring range | Connection type | ||
| Resistance transmitter | 0 | 4500 | 500K | Two-wire | |
| Block diagram |

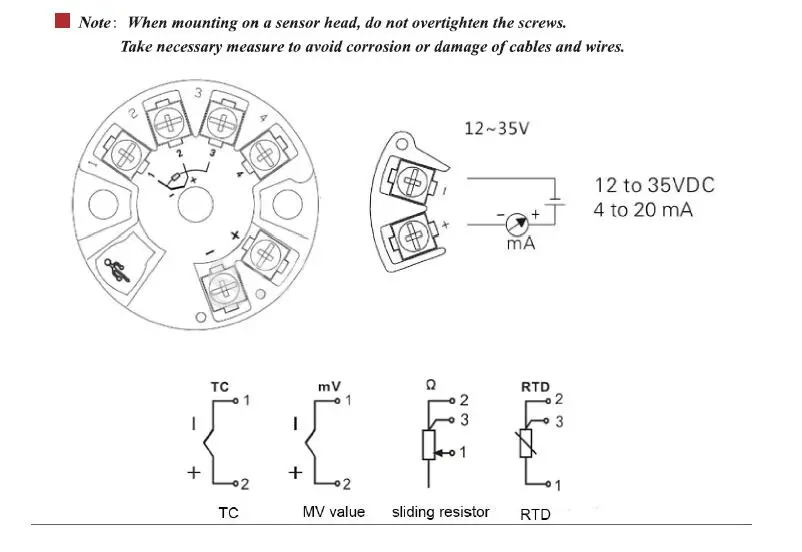

| Wiring |

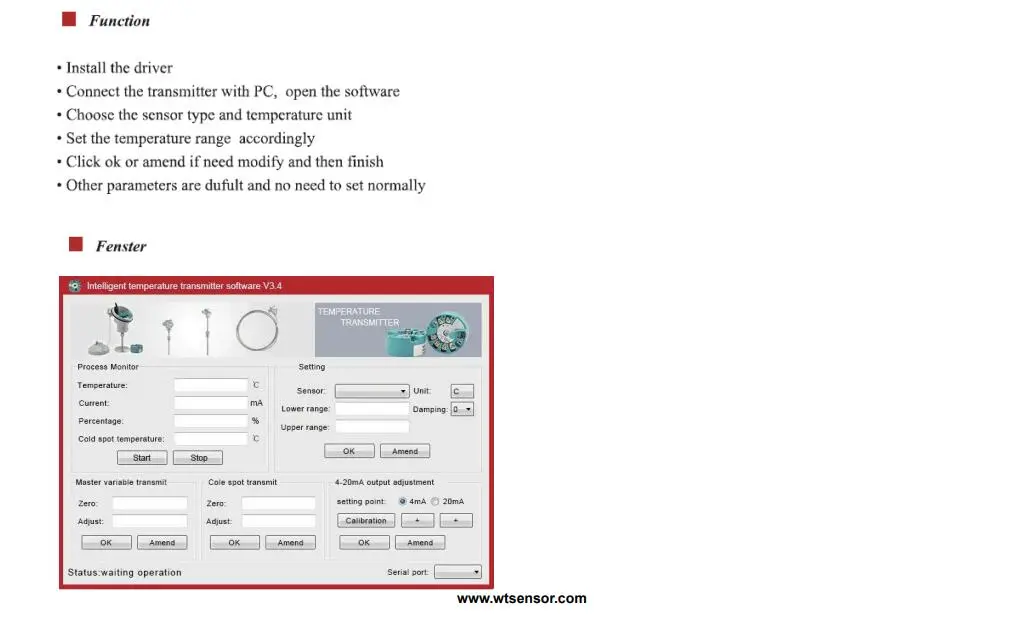

| Configuration interface |
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on Pressure Sensor, Pressure Gauge and level sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 2000000 pieces pressure sensor since year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 6~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
