Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling

Product Description

Features
High precision
Adjustable response time
NPN, PNP compatible, free switching
Button operation, shortcut button for zero calibration, fast unit switching
OLED shows current pressure
LED for node action, easy to observe


Applications
Hydropower
Chemical industry
City water supply
Scientific research
Accurate measurement and control of pressure of fluids

Overview

PCM710 electronic digital Pressure Switch is an intelligent digital product for pressure measuring and controlling which integrates Pressure Measurement, display, output and control. The product is in full electronic structure. Piezoresistive silicon Pressure Sensor is adopted in the front end. The output signal is processed by the amplifier of high precision and low temperature drift, and then sent into high precision A/D converter. Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch output, accomplishing the measurement of the pressure of control system.
PCM710 has advantages of flexible use, simple operation, easy debugging and high safety and reliability. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries for the measurement, display and control of pressure of fluids.

Performance parameters

Pressure range0~10kPa…100MPa
Overpressure150~300%F.S.
Accuracy0.1, 0.5
Supply12 - 30V, 24V recommended
Display modeOLED display of 4 digits
Output mode2-way switch, NPN and PNP compatible
Load capacity≤24V 1.2A
Power consumption≤15mA
Operating temp.-25ºC-80ºC
Storage temp.-40ºC-100ºC
Response time≤20ms
Insulation100MΩ/250VDC
ProtectionIP65

Structural performance parameters

Housing material304
Medium compatibilityLiquid contacting diaphragm 316L, pressure port 304

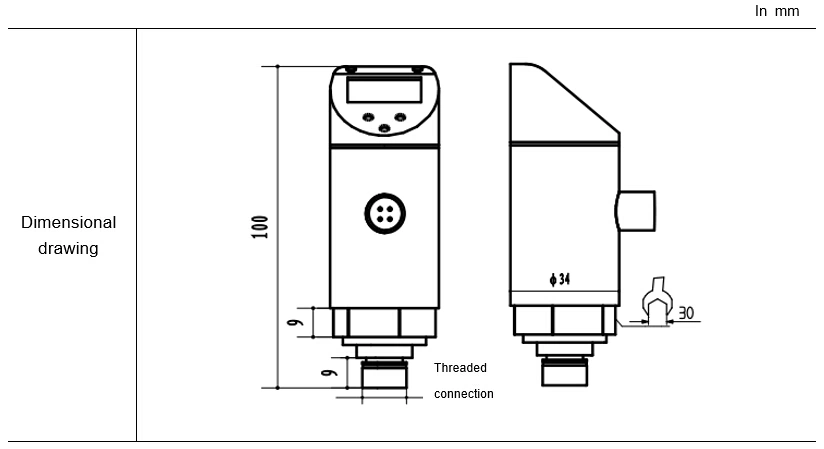

Structure and dimensions

Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling

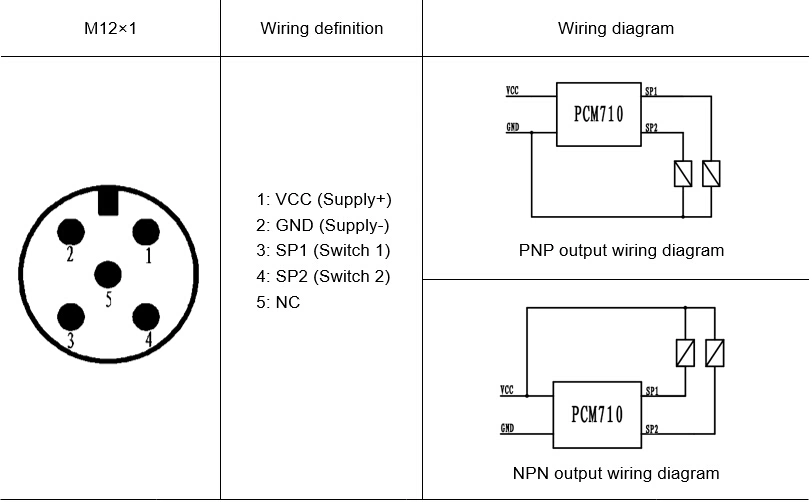

Wring method

Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling
Pressure range selection

CodePressure referencePressure rangeOverpressure %FSBurst pressure %FS
10kG0~10kPa300600
35kG0~35kPa300600
70kG0~70kPa300600
100kG, A0~100kPa200500
250kG, A0~250kPa200500
400kG, A0~400kPa200500
600kG, A0~600kPa200500
1.0MG, A0~1.0MPa200500
2.5MG, S0~2.5MPa200500
6MS0~6MPa200400
10MS0~10MPa200400
16MS0~16MPa200400
25MS0~25MPa150300
40MS0~40MPa150300
60MS0~60MPa150300
100MS0~100MPa150200

Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure

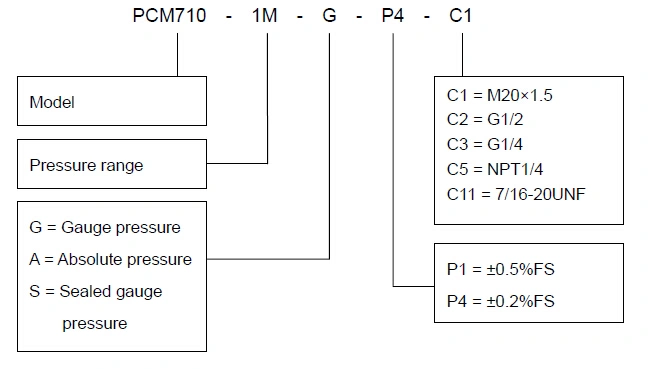

How to order


Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling
Example: PCM710-1MGP4C1
Refer to PCM710 pressure switch, with pressure range 1MPa, gauge pressure, accuracy ±0.2%FS, and threaded connection M20×1.5.


Optional accessories

NameSpecification
M12×1 female with wireM12×1 female 5-pin with wire 2m

Ordering tips:
  1. Ensure compatibility between measured media and contacting part of product.
  2. Customization is available for special requirements on the appearance and performance parameters of the product.
About Us:
Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling


Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling

Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling

Certifications:
Industrial Pressure Switch Digital Pressure Switch for Pipeline Boiler Pressure Controlling


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on pressure sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
