NPN PNP Machical Pressure Level Switch Intelligent Level Switch CE

Features
High precision
Adjustable response time
NPN, PNP compatible, free switching
Button operation, shortcut button for one-click zero calibration, fast unit switching
OLED shows the current liquid level
Level Measurement for the  liquid, oil medium etc.


Applications
Hydropower
Chemical industry
City water supply
Scientific research
Accurate measurement and control of pressure of fluids


Overview
PCM710Y Intelligent Level Switch is a product which integrates level measurement, display and control.  This product is in full-electronic structure, with the stainless steel silicon Pressure Sensor probe throw-in type usage mode, under elaborate design and adjustment, so as to realize the high speed reaction of the level switch. The output signal is processed by the amplifier with high precision and low temperature drift, and then sent into high precision A/D converter. Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch quantity and 4~20mA analog quantity, accomplishing the measurement and control for the liquid level of the control system.
This intelligent level switch has advantages of flexible use, simple operation, easy commissioning and high safety and reliability. With the separate design for the probe and the display gauge head, this level switch has the features of easy installation, explicit indication etc. It is widely used for the liquid level measurement and control of oil can, oil tank, tank car, and in tap water, food hygiene, petroleum, chemical, mechanical, hydraulic and other industries.

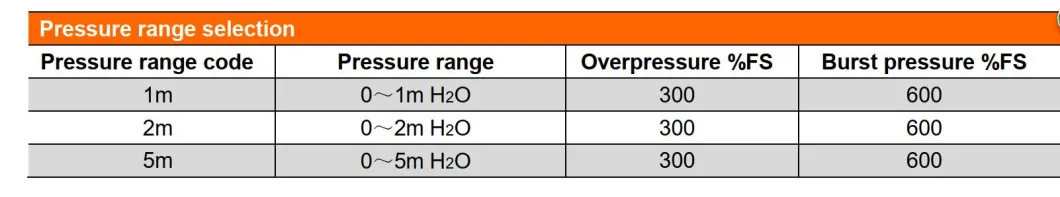

Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure

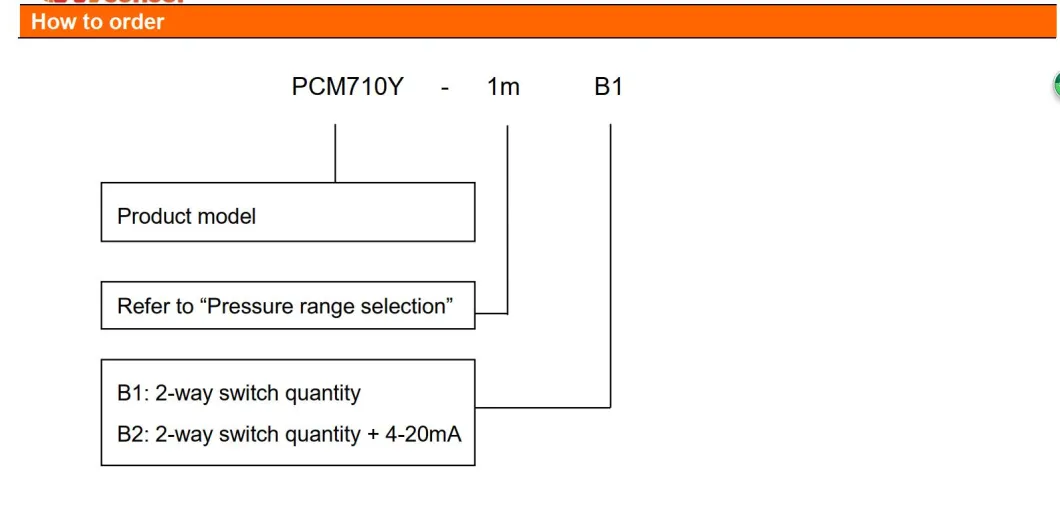

Example: PCM710Y-1mB1
Refer to PCM710Y Level Switch, with pressure range 1m H2O, and output of 2-way switch quantity


Ordering tips:

1. Ensure compatibility between measured media and contacting part of product.
2. Customization is available for special requirements on the appearance and performance parameters of the product.
