OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch

Product Description

Features
High precision

Adjustable response time
NPN, PNP compatible, free switching
Button operation, shortcut button for one-click zero calibration, fast unit switching
OLED shows the current liquid level
Level Measurement for the  liquid, oil medium etc.


Applications
Hydropower
Chemical industry
City water supply
Scientific research
Accurate measurement and control of pressure of fluids


Overview

PCM710Y Intelligent Level Switch is a product which integrates level measurement, display and control.  This product is in full-electronic structure, with the stainless steel silicon Pressure Sensor probe throw-in type usage mode, under elaborate design and adjustment, so as to realize the high speed reaction of the level switch. The output signal is processed by the amplifier with high precision and low temperature drift, and then sent into high precision A/D converter. Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch quantity and 4~20mA analog quantity, accomplishing the measurement and control for the liquid level of the control system.
This intelligent level switch has advantages of flexible use, simple operation, easy commissioning and high safety and reliability. With the separate design for the probe and the display gauge head, this level switch has the features of easy installation, explicit indication etc. It is widely used for the liquid level measurement and control of oil can, oil tank, tank car, and in tap water, food hygiene, petroleum, chemical, mechanical, hydraulic and other industries.
OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch

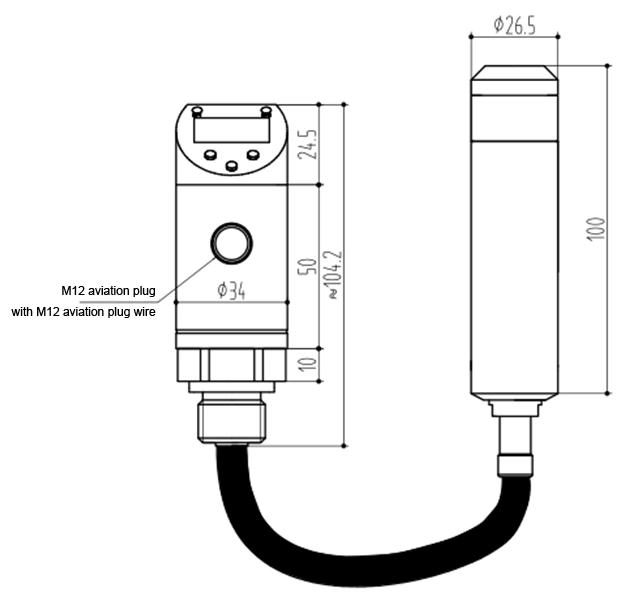

Structure and dimensions

OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch
Wring method

OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch

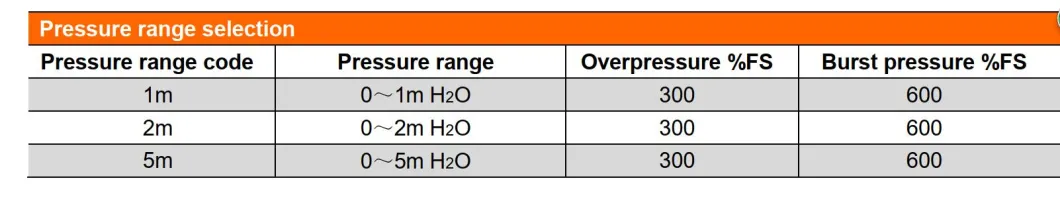

Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure

OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch


How to order


OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch

Example: PCM710Y-1mB1
Refer to PCM710Y Level Switch, with pressure range 1m H2O, and output of 2-way switch quantity


Optional accessories

NameSpecification
M12×1 female with wireM12×1 female 5-pin with wire 2m

Ordering tips:
  1. Ensure compatibility between measured media and contacting part of product.
  2. Customization is available for special requirements on the appearance and performance parameters of the product.

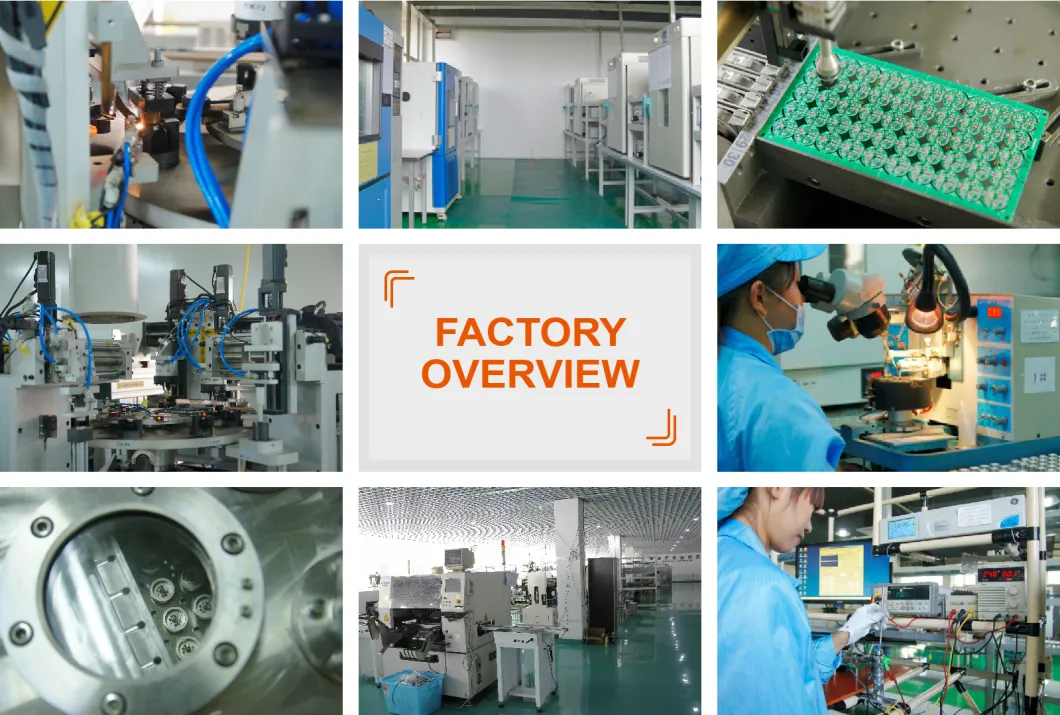

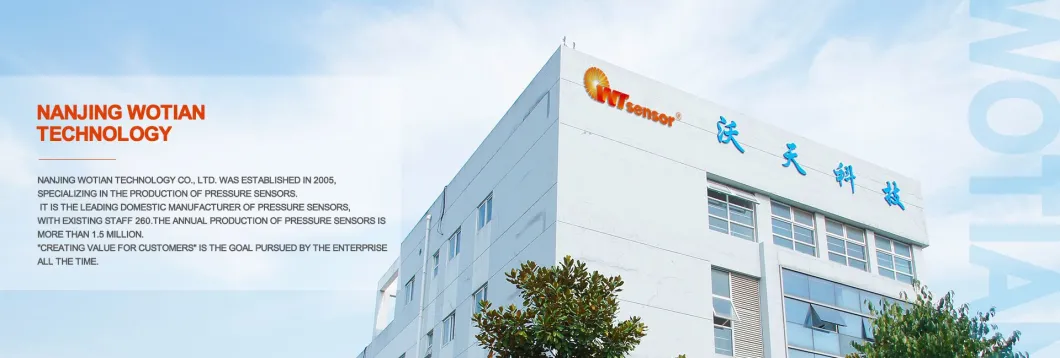

About Us:
OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch
OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch
OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch

Certifications:
OLED Display NPN, PNP Compatible Intelligent 5 M 10m H2O Water Liquid Level Switch


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on pressure sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
