High Precision Digita Water Level Switch with Display One-Click Zero Calibration Pressure Level Switch
Adjustable response time
NPN, PNP compatible, free switching
Button operation, shortcut button for one-click zero calibration, fast unit switching
OLED shows the current liquid level
Level Measurement for the liquid, oil medium etc.
City water supply
Accurate measurement and control of pressure of fluids
PCM710Y Intelligent Level Switch is a product which integrates level measurement, display and control. This product is in full-electronic structure, with the stainless steel silicon Pressure Sensor probe throw-in type usage mode, under elaborate design and adjustment, so as to realize the high speed reaction of the level switch. The output signal is processed by the amplifier with high precision and low temperature drift, and then sent into high precision A/D converter. Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch quantity and 4~20mA analog quantity, accomplishing the measurement and control for the liquid level of the control system.
This intelligent level switch has advantages of flexible use, simple operation, easy commissioning and high safety and reliability. With the separate design for the probe and the display gauge head, this level switch has the features of easy installation, explicit indication etc. It is widely used for the liquid level measurement and control of oil can, oil tank, tank car, and in tap water, food hygiene, petroleum, chemical, mechanical, hydraulic and other industries.

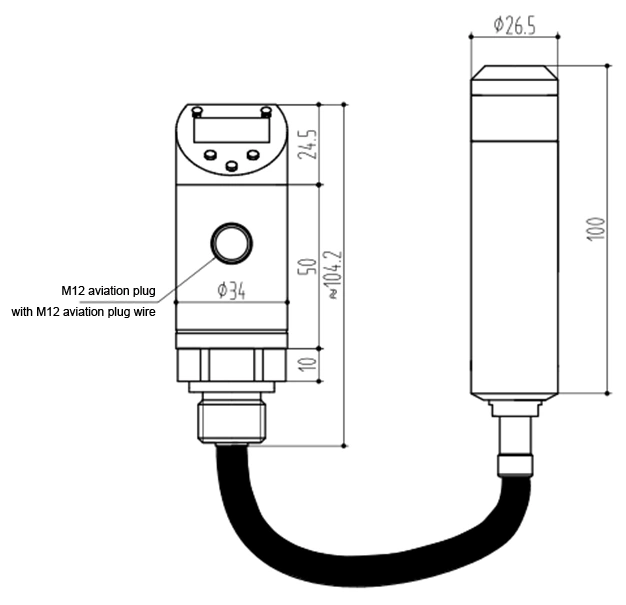

|Structure and dimensions|

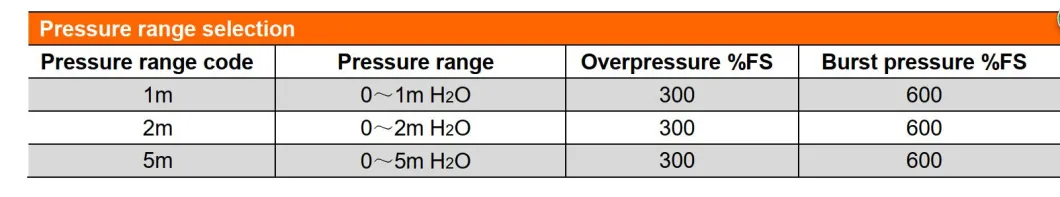

Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure

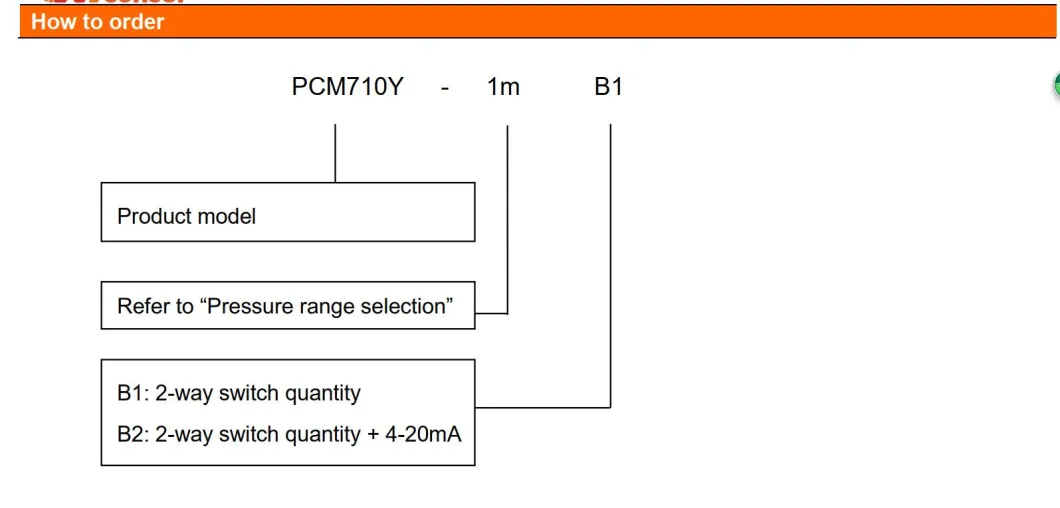

|How to order|
Refer to PCM710Y Level Switch, with pressure range 1m H2O, and output of 2-way switch quantity

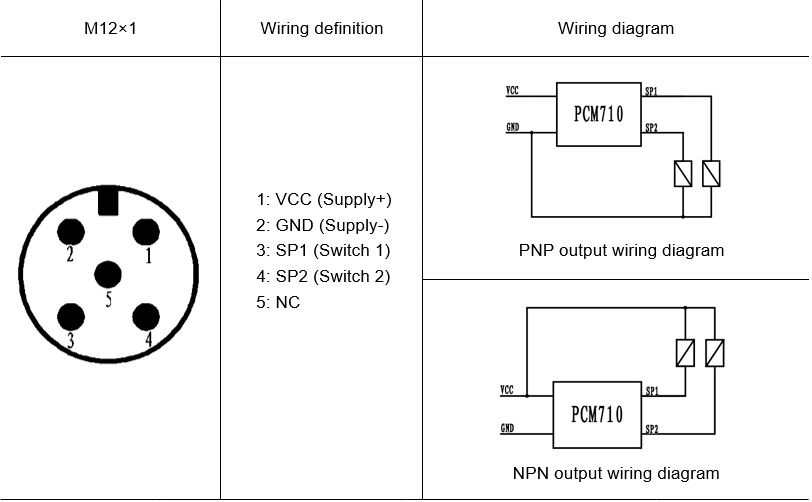

|M12×1 female with wire||M12×1 female 5-pin with wire 2m|
- Ensure compatibility between measured media and contacting part of product.
- Customization is available for special requirements on the appearance and performance parameters of the product.
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
