Flush Piezoresistive Pressure Sensor CE RoHS
Product Description
Sanitary application
Piezoresistive silicon chip employed
MEMS technology
CE certificate
Note: the accessory is not included in the shipment unless ordered.
About US:
Exhibitions:
Certifications:
1.5" and 2" Tri-Clamp connections
4 to 20mA 2-wire output, other options availablePiezoresistive silicon chip employed
MEMS technology
CE certificate
| Pressure | |
| Pressure Range | -100kPa, 35kpa, 70kpa, 100kpa, 250kpa, 400kpa, 600kpa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa |
| Pressure Reference | Gauge pressure | Absolute pressure | Sealed gauge pressure |
| Overpressure | 300%F.S.(≤70kPa) | 200%F.S.(≤10MPa) |
| Output Signal | |
| Output | 4-20mA | 0.5 to 4.5V | 1 to 5V | 0 to 5V |
| Performance | |
| Accuracy (including linearity, hysteresis and repeatability) | ±0.5%F.S. (Calibrated in vertical mounting position) |
| Supply | 24VDC | 12VDC | 5VDC |
| Compensated Temp. | -20ºC - 85ºC (typical) |
| Operating Temp. | -40ºC - 125ºC |
| Medium Temp. | -40ºC - 125ºC |
| Storage Temp. | -40ºC - 125ºC |
| Zero Temp. Coefficient | ±1.5%F.S.max.(@-20ºC - 85ºC) |
| Span Temp. Coefficient | ±1.5%F.S.max.(@-20ºC - 85ºC) |
| Pressure port | see "how to order" |
| Protection | IP65 |
| Housing material | Stainless steel 304 (316L for wetted part) |
| Long-term Stability | ≤0.2%F.S./year |
| Weight | 280g (approx.) |
| Oil filling | M20 |
| Electrical connection (DIN 43650) |
| Pressure port |

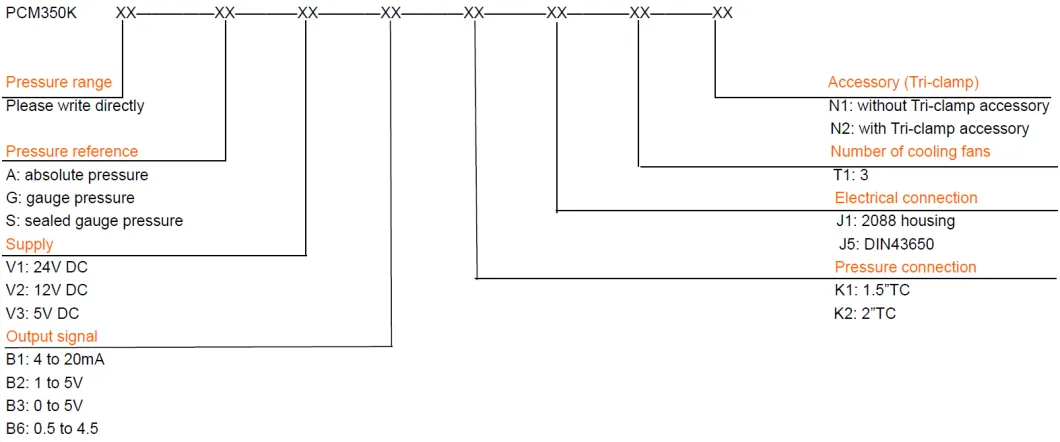

| How to order |
| Accessory(Tri-clamp) |
Note: the accessory is not included in the shipment unless ordered.
