4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer

Product Description


4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor TransducerPCM303 Piezoresistive Silicon Universal Pressure Transmitter
Product overview
PCM303 economic pressure transmitter adopts diffused silicon Pressure Sensor as pressure sensing element. Through internal ASIC, the millivolt signal of sensor is transmitted into standard current signal. PCM303 can be directly connected with computer interface card, control instruments, intelligent meters or PLC conveniently. Long-distance transmission can use current output. PCM303 features with small size, light weight, all stainless steel sealing structure and ability to work in corrosive environments. The product is easy to install and has extremely high vibration and shock resistance. PCM303 is widely used in process control, aviation, aerospace, automotive, medical equipment, HVAC field, etc.
Features
316L stainless steel diaphragm structure
High precision, all stainless steel structure
Small size and light weight
Strong anti-interference, good long-term stability
Diversified formal structures, easy installation and use
Wide measuring range, can measure absolute pressure, gauge pressure and sealed gauge pressure
Excellent vibration and shock resistance
Zero, full scale span adjustable

Applications
Process control
Aviation and aerospace
Automotive, medical equipment
Piping system
Performance parameters
Pressure range-100kPa…0~10kPa…100MPa
Pressure referenceGauge pressure, Absolute pressure, Sealed gauge pressure
Supply & output4~20mA, 0~5V, 1~5V, 0~10V, 1~10V (12~30VDC)
0.5~4.5V R/M(5VDC)
Accuracy2%FS (-5~5kPa); 0.5%FS(Other ranges)
Hysteresis & repeatability0.1%FS
Temp. Drift1.5%FS(-20ºC~85ºC)
Response time≤1ms(Up to 90%FS)
Overpressure150%FS(≤60MPa), 120%FS(60~100 MPa)
Service life≥10×106 pressure cycles
Ambient temp. -20ºC~85ºC
Medium temp. -30ºC~105ºC
Storage temp. -40ºC~125ºC
EMC-interferenceIEC 61000-6-3
EMC-immunityIEC 61000-6-2
Insulation resistance≥100MΩ/500VDC(200MΩ/250VDC)
Vibration resistanceSine curve: 20g, 25Hz~2kHz; IEC 60068-2-6
Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64
Shock resistanceShock: 200g/1ms; IEC 60068-2-27
Free fall: 1m; IEC 60068-2-32
ProtectionIP65
Medium compatibilityAll the medium compatible with 316L
Net weight150~180g
Ex-proofExia II CT6 (For 4~20mA only)
Size of hexagonHEX27

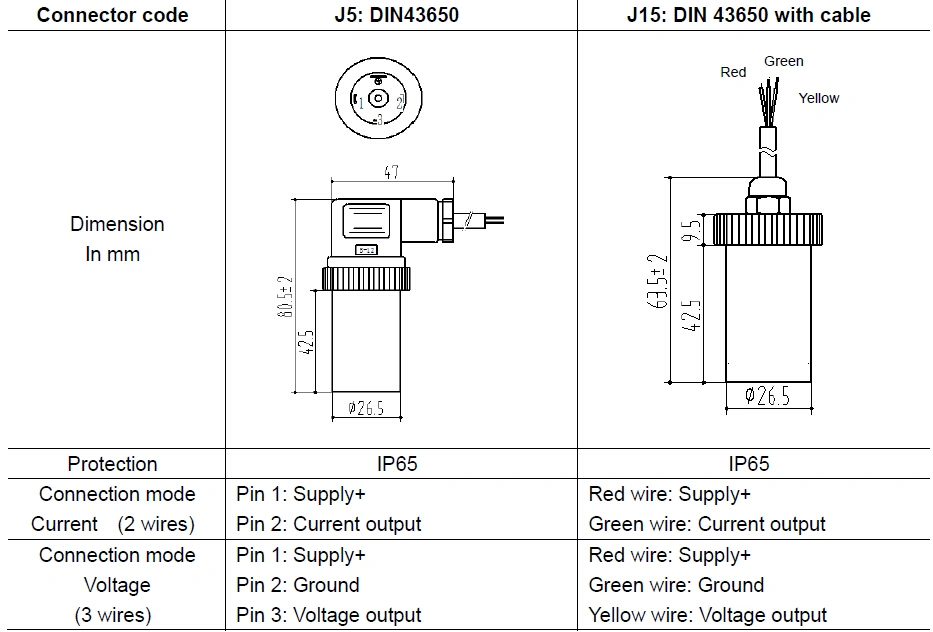

Electrical connection & wiring method
4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer

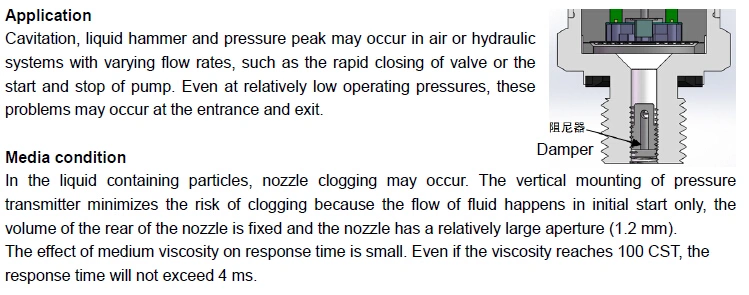

Application of damper

4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer

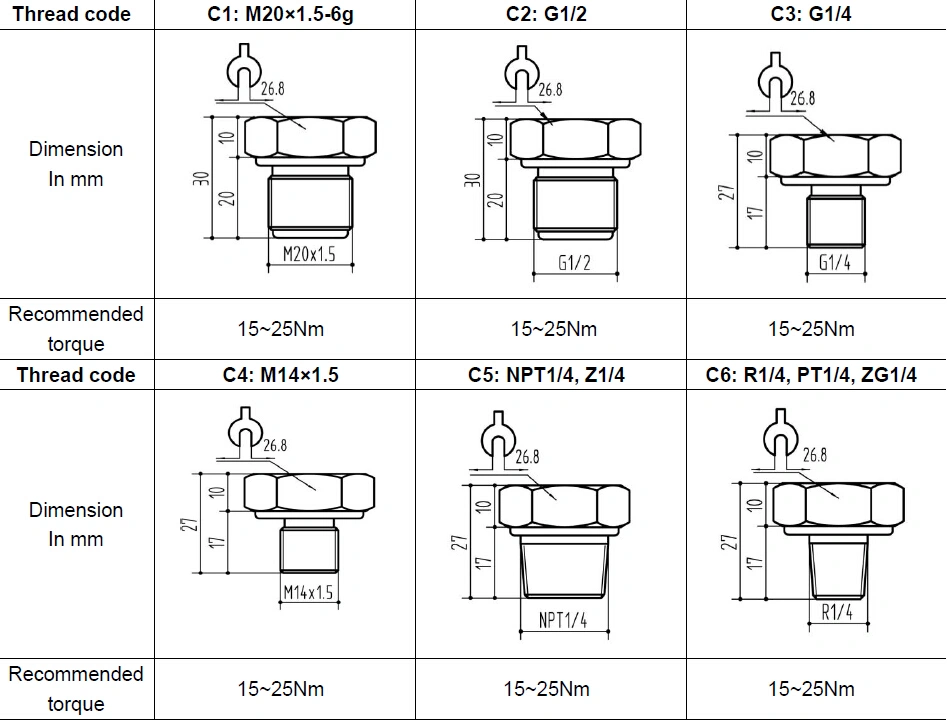

Pressure port
4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer
4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer
Pressure range selection
Pressure range codePressure referencePressure rangeOverpressureBurst pressureRemark
1KG0~1kPa200%FS600%FSNote 2
2KG0~2kPa200%FS600%FSNote 2
5KG0~5kPa200%FS500%FSNote 2
7KG0~7kPa200%FS500%FS
10KG0~10kPa200%FS500%FS
20KG0~20kPa200%FS500%FS
35KG0~35kPa200%FS500%FS
70KG0~70kPa200%FS500%FS
100KG0~100kPa150%FS300%FS
160KG0~160kPa150%FS300%FS
250KG0~250kPa150%FS300%FS
400KG0~400kPa150%FS300%FS
600KG0~600kPa150%FS300%FS
1MG0~1MPa150%FS300%FS
1.6MG0~1.6MPa150%FS300%FS
2.5MG0~2.5MPa150%FS300%FS
35KA0~35kPa150%FS500%FS
100KA0~100kPa150%FS300%FS
160KA0~160kPa150%FS300%FS
250KA0~250kPa150%FS300%FS
400KA0~400kPa150%FS300%FS
600KA0~600kPa150%FS300%FS
1MA0~1MPa150%FS300%FS
1.6MA0~1.6MPa150%FS300%FS
2.5MA0~2.5MPa150%FS300%FS
4MA0~4MPa150%FS300%FS
1MS0~1MPa150%FS300%FS
1.6MS0~1.6MPa150%FS300%FS
2.5MS0~2.5MPa150%FS300%FS
4MS0~4MPa150%FS300%FS
6MS0~6MPa150%FS300%FS
10MS0~10MPa150%FS300%FS
16MS0~16MPa150%FS300%FS
25MS0~25MPa150%FS300%FS
40MS0~40MPa150%FS300%FS
60MS0~60MPa150%FS200%FS
100MS0~100MPa120%FS150%FS
N1KN/A-100~0kPa150%FS300%FS
N2KN/A0~-100kPa150%FS300%FS
N3KN/A-100~100kPa150%FS300%FS
N5MN/A-100~250kPa150%FS300%FS
N7MN/A-0.1~0.6MPa150%FS300%FS
N8MN/A-0.1~1MPa150%FS300%FS
N9MN/A-0.1~1.6MPa150%FS300%FS
N10MN/A-0.1~2.5MPa150%FS300%FS
Note 1: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
Note 2: When selecting pressure sensor not filled with oil, the measuring medium must be pure gas.
Accessory

4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer

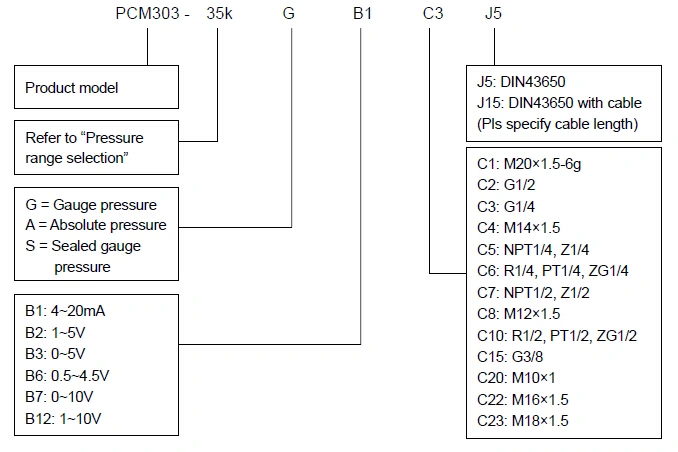

How to order

4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer

Example: PCM303-35kGB1C3J5
Refer to product model PCM303, with pressure range 0~35kPa, pressure reference gauge pressure, output signal 4~20mA, pressure port G1/4, electrical connection DIN43650.

Ordering tips:
Ensure compatibility between measured media and contacting part of product when placing an order.

Wotian reserves the right to make any change in this publication without notice. The information provided is believed to be accurate and reliable as of this product sheet.

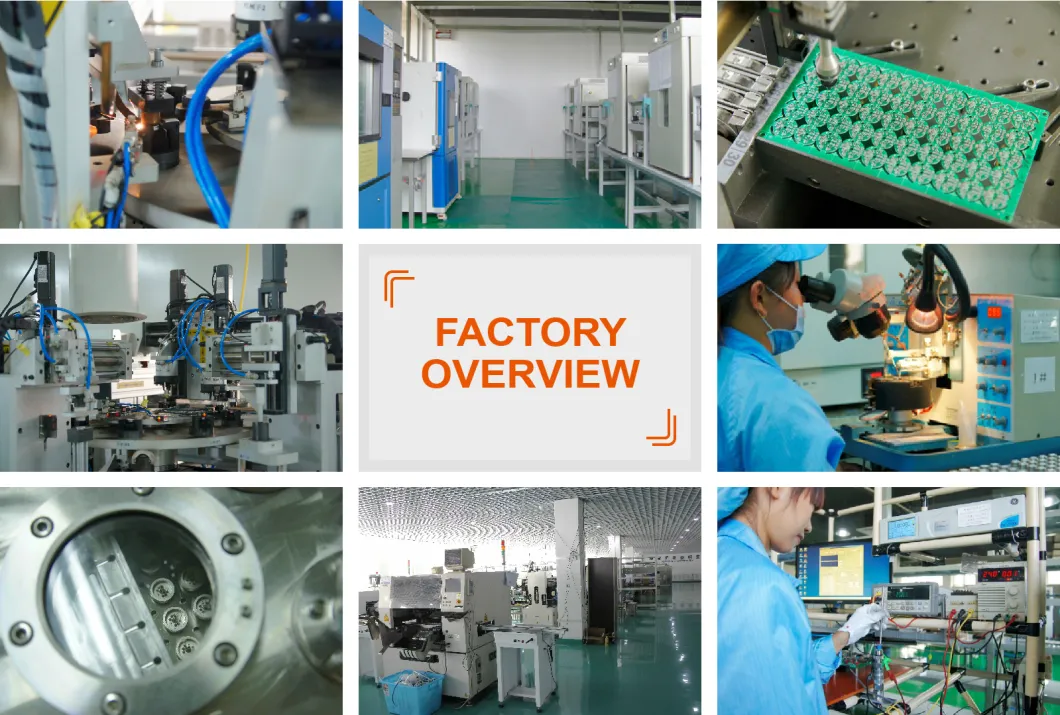

About Us:
4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer



4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer

Certifications:
4-20mA Anti-Vibration 0-5V 316L Stainless Steel -100kpa 100MPa IP65 Pressure Sensor Transducer



FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on pressure sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
