Mems Technology Piezoresistive Silicon Chip G1/4 Thread Pressure Sensor PC11

Product Description

Piezoresistive silicon chip employed
Perfect long term stability
MEMS technology


PC11 Pressure Sensor is a standard and popular sensor applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the transducer. The sensor is welded within the housing, and no leakage will happen. It is more reliable compared with O-ring sealing for leakage.

Caution
The sensor is welded with housing, so no leakage will happen. That is more reliable compared with O-ring sealing. But if the sensor has problem, the housing will be wasted.

Pressure range

Pressure range-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa,   10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Pressure referenceGauge pressure | Absolute pressure | Sealed gauge pressure
Overpressure300%F.S.(70kPa) | 200%F.S.(<25MPa) | 150%F.S.(25MPa)
Output signal

Zero output±2mV
Span output1.5mA excitation: ≥40mV (≤35kPa); ≥60mV (Other ranges)
10V excitation: ≥60mV (≤35kPa); 80-120mV (Other ranges)
Specification

Accuracy (linearity, repeatability and hysteresis)±0.25%F.S. (Typical)
Excitation1.5mA | 10VDC
Compensated temp.0ºC-60ºC (≤35kPa) | -10ºC-70ºC (Other ranges)
Operating temp.-40ºC-125ºC
Storage temp.-40ºC-125ºC
Zero temp. coefficient 0.02%F.S. /ºC(≥100kPa) | 0.04%F.S. /ºC(<100kPa)
Span temp. coefficient0.02%F.S. /ºC(≥100kPa) | 0.04%F.S. /ºC(<100kPa)
Insulation resistance>200Mohm/250VDC
Input impedance2kΩ-5kΩ
Long term stability≤0.2%F.S.S/year
Vibration20g (20-5000Hz)
Shock100g (11ms)
Response time≤1ms(up to 90%F.S.)
Lifetime10*106 (cycles)
Oil fillingSilicon oil
O-ring NBR, Viton
Housing material                                 Stainless steel 304
Diaphragm material                                   Stainless steel 316L
Wire connection4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200ºC bearing
Pin connectionKovar pin (0.6um Gold platted)
Weight130g(approx.)

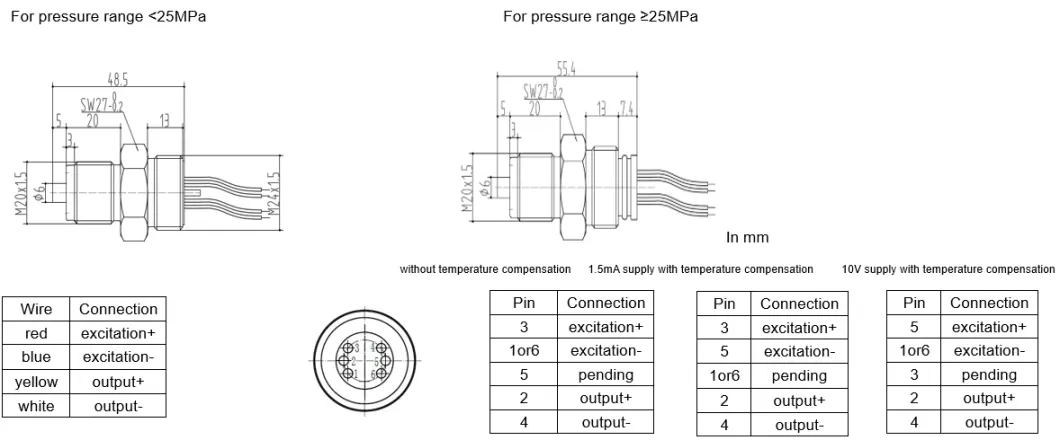

Drawing
