Medical Pressure Sensor with Pins for Air Oil Fuel Pressure Measuring PC24
Product Description
Without temperature compensation
PC24 Pressure Sensor is suitable for dry and non-corrosive air measuring. It is easy for mounting with PCB. It is a solution for low cost application with low requirements.
- Hospital and portable ventilator
- Oxygen concentrators and O2 Therapy
- Sleep apnea
- Operating room
- Environmental
- Technology
- Manufacturing
Heating Ventilating and Air Conditioning
| Pressure range | |
| Pressure range | 100Pa, 1kPa, 2kPa, 7kPa, 10kPa (bar and psi unit available) |
| Pressure reference | Gauge pressure | Absolute pressure | Differential pressure |
| Overpressure | 300%F.S. |
| Output signal | |
| Output | ≥30mV |
| Specification | |
| Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (≥10kPa) | ±1.5%F.S. (≤2kPa) | ±1%F.S. (2kPa-10kPa) |
| Excitation | 1.5mA | 5VDC |
| Compensated temp. | Without temperature compensation |
| Operating temp. | 0ºC -50ºC |
| Storage temp. | 0ºC -85ºC |
| Input impedance | 2kΩ-5kΩ |
| Long term stability | ≤0.2%F.S.S./year |
| Housing material | Plastic |
| Weight | 5g(approx) |

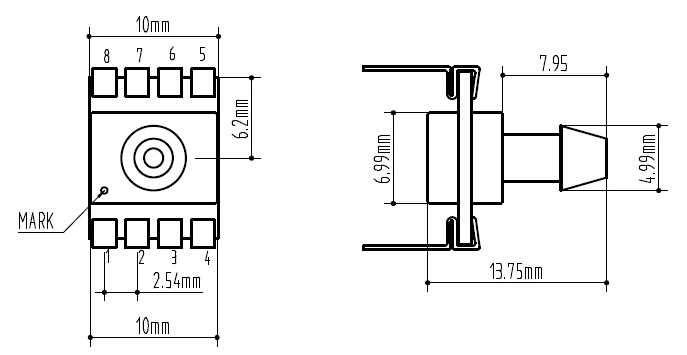

| Mechanical drawing |
1. +Vout
2. -1.5mA
3. -Vout
4. +1.5mA
| How to order |
About Us:
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
