High Performance Diaphragm Customized Wide Range Quality Pressure Sensor CE

Product Description

PC12-2 Flush Diaphragm Pressure Sensor with thread
Flush diaphragm pressure sensor with thread structure
Imported highly reliable pressure die
A single time silicon oil isolated filling technology
Compensation board filled with glue for protection against moisture
All stainless steel housing material
High accuracy, high reliability
Strong anti-interference, good long-term stability
18 months warranty period

The PC12-2 pressure sensor adopts food-grade oil filling technology. The perceived pressure is transmitted to the pressure chip through the oil to generate an electrical signal, and the compensation circuit corrects the pressure signal to a linear pressure signal. The product adopts flat membrane structure, easy to clean, high reliability, suitable for pressure and liquid Level Measurement of viscous fluids such as glue.

Caution

1. Please do not touch the diaphragm by finger and other hard objects, or it may be damaged.

2. The sensor filled with olive oil is for sanitary application. It can't work when the temperature is below 0ºC, because the olive oil will freeze below 0ºC.

Pressure range
Pressure range	-100kPa~0~35kPa…25MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Excitation	1.5mA recommended for constant current
Input impedance	Constant current: 2kΩ~5kΩ
Electrical connection	Gold-plated KOVAR pin or silicon soft wire
Specification
Compensation temp	Constant current: 0ºC~60ºC(≤70kPa),-10ºC~70ºC(other ranges);
Operating temp.	-40ºC~120ºC
Storage temp.	-40ºC~120ºC
Insulation resistance	≥200MΩ/250VDC
Response time	≤1ms (up to 90%FS)
Measured medium	All the liquids and gases compatible with 316L
Mechanical vibration	20g (20~5000Hz)
Shock	100g (10ms)
Service life	10×10 6 (cycles)
Input impedance	2kΩ~5kΩ
Diaphragm material	316L
Housing material	316L
Oil filling	M20
Pin connection	Kovar pin (0.6um Gold platted)
Weight	135g(approx.)

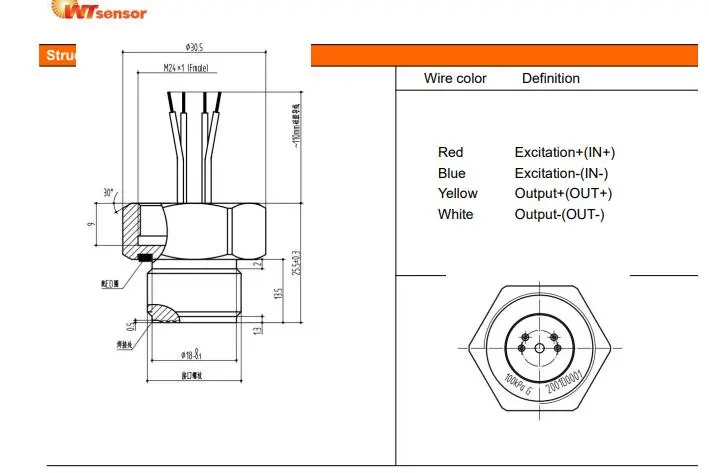

Drawing

High Performance Diaphragm Customized Wide Range Quality Pressure Sensor CE

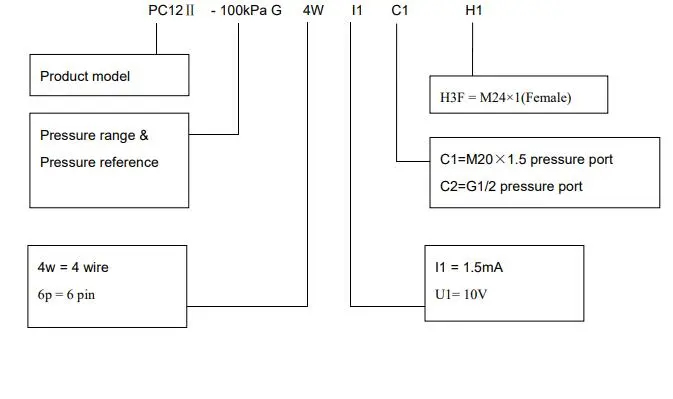

How to order

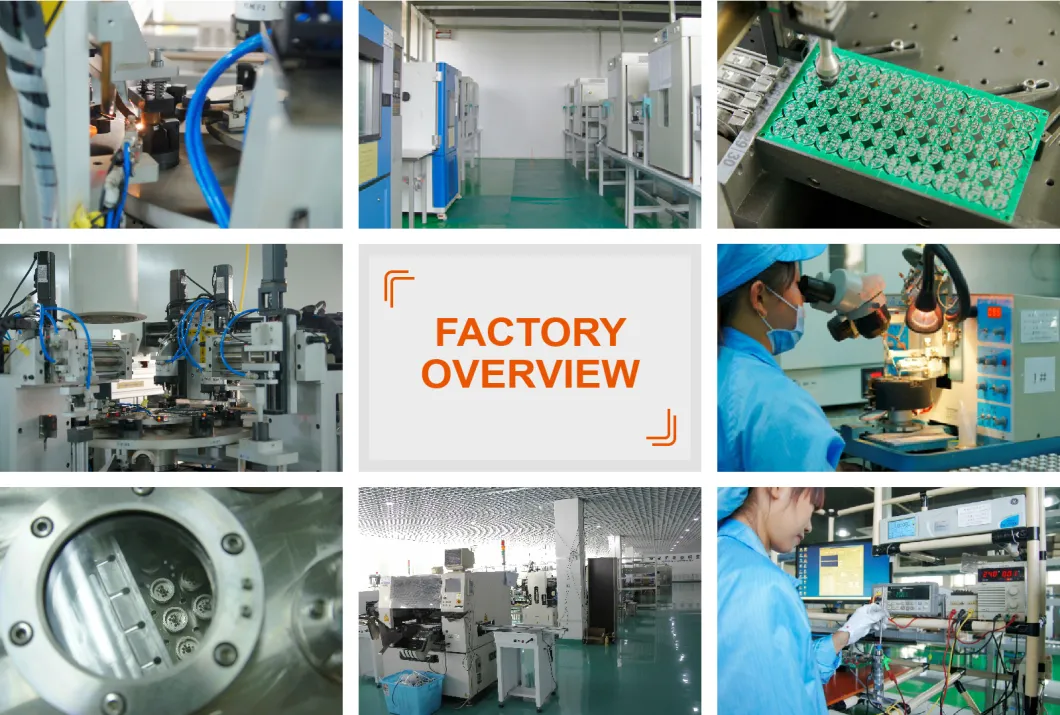

About Us:
High Performance Diaphragm Customized Wide Range Quality Pressure Sensor CE

Certifications:

FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on pressure sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.

Contact us if you need more details on Flat Diaphragm Pressure Sensor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pressure transducer、Piezoresistive Pressure Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
