Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter

Product Description

Product overview

PC10 piezoresistive silicon Pressure Sensor is the core component for the manufacture of Pressure Sensors and pressure transmitters. As high-performance pressure sensitive component, PC10 can be easily amplified and assembled into the pressure transmitters with standard signal output.

PC10 packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of Pressure Measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC10 uses O-ring for pressure seal, which is easy to install.

The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock and anti-vibration sensors, especially for national defense weapons and equipment.

Features

  •  With constant current and constant voltage excitation options
  •  Imported highly reliable pressure die
  •  Wide temperature compensation
  •  Normalized output available
  •  Compensation board filled with glue for protection against moisture
  •  Φ19mm standard OEM
  •  All 316L material
  •  High performance, all solid, high reliability
  • 18 months warranty period

Applications

  •  Process control systems
  •  Pressure calibration instruments
  •  Refrigeration equipment and HVAC control
  •  Hydraulic systems and valves
  •  Level Measurement
  •  Biomedical instruments
  •  Ships and navigation
  •  Aircraft and avionics systems
  •  Weaponry

Electrical performance parameters

Pressure range-100kPa~0~10kPa…100MPa
Pressure referenceGauge pressure | Absolute pressure | Sealed gauge pressure
Excitation1.5mA recommended for constant current
10V recommended for constant voltage
Input impedanceConstant current: 2kΩ~5kΩ
Constant voltage: 3kΩ~18kΩ
Electrical connectionGold-plated KOVAR pin or silicon soft wire
Compensation temp.Constant current: ≤70kPa 0ºC~60ºC; other ranges -10ºC~70ºC
Constant voltage: -20ºC~85ºC
Operating temp.-40ºC~125ºC
Storage temp.-40ºC~125ºC
Insulation resistance≥200MΩ/250VDC
Response time≤1ms (up to 90%FS)
Measured mediumAll the liquids and gases compatible with 316L.
Mechanical vibration20g (20~5000HZ)
Shock100g (10ms)
Service life10×106 (cycles)
Structural performance parameters

Diaphragm material316L
Housing material316L
Oil fillingSilicon oil
Sealing ringNBR or fluorine rubber

Basic parameters

ItemConditionMinNominalMaxUnitNote
Nonlinearity -0.3±0.20.3%FSNote(1)
Hysteresis -0.05±0.030.05%FS
Repeatability -0.05±0.030.05%FS
Zero output -2±12mV
Full scale span output1.5mA, 10kPa
1.5mA, other ranges
10V, 10kPa
10V, other ranges
30
60
60
98

90

100

150

102
mV
Zero temp. coefficient10kPa
other ranges
-2
-1.5
±1.5
±0.75
2
1.5
%FSNote(2)
Span temp. coefficient -1.5±0.751.5%FSNote(2)
Thermal hysteresis -0.075±0.050.075%FSNote(3)
Long term stability -0.3±0.20.3%FS/Year

Note:
(1) Calculate according to BFSL least square method.
(2) In the compensation temperature range, refer to 30 ºC for 0 ºC ~ 60 and -10 ºC ~ 70 ºC, and refer to 32.5 ºC for -20 ºC ~ 85 ºC.
(3) After passing high and low temperature, return to the reference temperature.


Structure and dimensions


In mm
Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter


Electrical connection (in mm)


Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter

Pressure range selection

Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter

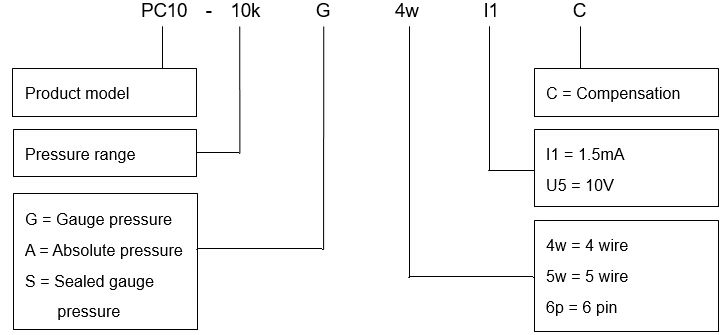

How to order


Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter

Example: PC10-10kG4wI1C
PC10 pressure sensor, pressure range 10kPa, gauge pressure, 4 wire, 1.5mA excitation, current compensation.

Ordering tips:
1 Pressure range can be selected higher or lower than actual conditions but should be within ±30%FS.
2 Pressure reference consists of gauge pressure, absolute pressure and sealed gauge pressure.
  • Gauge pressure is based on the current atmospheric pressure. Generally, it refers to the measurement of pressure which is greater than the current atmospheric pressure. Negative pressure is a special case of gauge pressure. It refers that there is such working condition that the pressure of work site is lower than the current atmospheric pressure.
  • Absolute pressure is based on vacuum.
  • As for sealed gauge pressure, PC10 uses absolute pressure die for gauge pressure product based on the atmospheric pressure of production site. For pressure range above 6MPa, gauge pressure cannot be selected, but only sealed gauge pressure.
3 Confirm the maximum overload of the applied system, which should be less than the overload protection limit of the sensor, otherwise it will affect the product life or even damage the product.
4 The commonly used compensation of the product is 1.5mA constant current compensation. Suggest to select the option with priority.
5 The material and process for manufacturing negative pressure sensors are different from those of positive pressure sensors. So gauge pressure sensors cannot be used as substitute of negative pressure sensors.
6 For special requirements on performance parameters and functions of the product, please contact us.

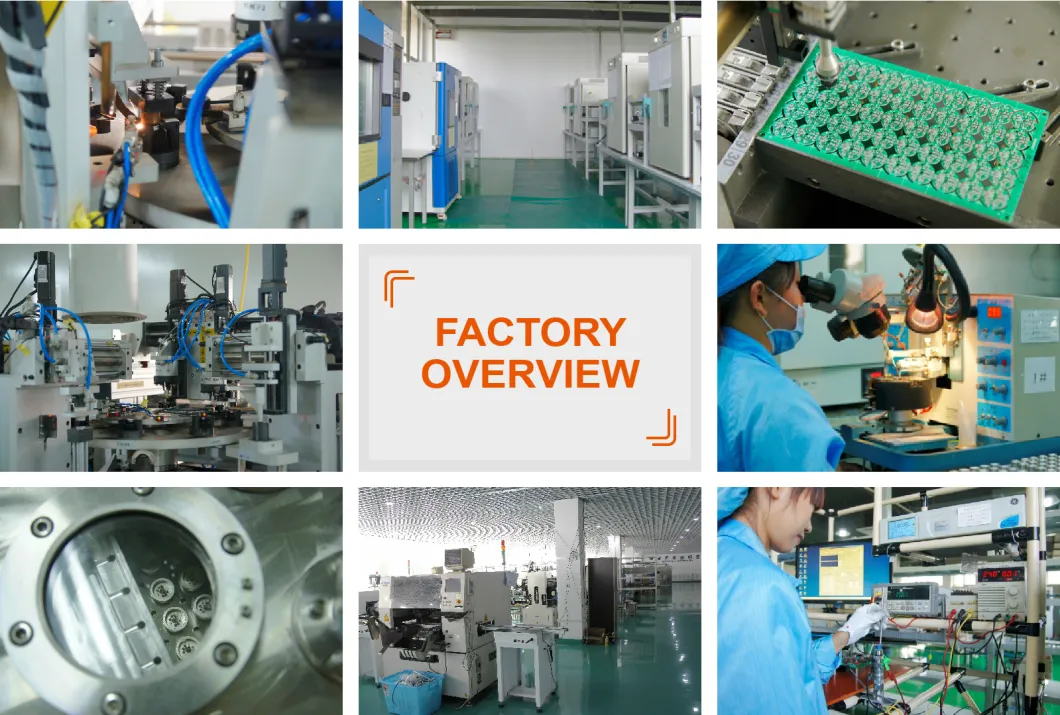

About Us:
Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter


Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter

Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter

Certifications:
Fuel Oil Air Pressure Sensor Liquid Pressure Transmitter


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on pressure sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
