Absolute Pressure Sensor Pressure Transducer Pressure Control PCM10

Product Description

Amplified output (ASIC inside)
I²C
0.5 to 4.5V
4 to 20mA


Pressure range

Pressure range35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa (bar and psi unit available)
Pressure referenceGauge pressure | Absolute pressure | Sealed gauge pressure
Overpressure300%F.S.(70Kpa) | 200%F.S.(<25Mpa) | 150%F.S(25Mpa)
Output signal

Output4 to 20mA (24V excitation)
0.5 to 4.5V ratio metric (5V excitation)
I²C (3.3V excitation)
Specification

Accuracy (linearity, repeatability and hysteresis)±0.5%F.S. (Typical)
Excitation24VDC | 5VDC | 3.3VDC
Compensated temp.0ºC-60ºC (≤35kPa) | -10ºC-70ºC (Other ranges)
Operating temp.-40-125ºC
Storage temp.-40-125ºC
Zero temp. coefficient 0.02%F.S./ ºC (≥100kPa) | 0.04%F.S. / ºC(<100kPa)
Span temp. coefficient0.02%F.S. / ºC(≥100kPa) | 0.04%F.S. / ºC(<100kPa)
Insulation resistance>200Mohm/250VDC
Bridge resistanceMin.Max.Unit
26005500ohm
Long term stability≤0.2%F.S.S/year
Vibration20g (20-5000Hz)
Oil fillingSilicon oil (Typical)
O-ring NBR, Viton
Housing and diaphragm                                    Stainless steel 316L
Wire connection4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200ºC bearing
Weight40g(approx)
ProtectionIP65

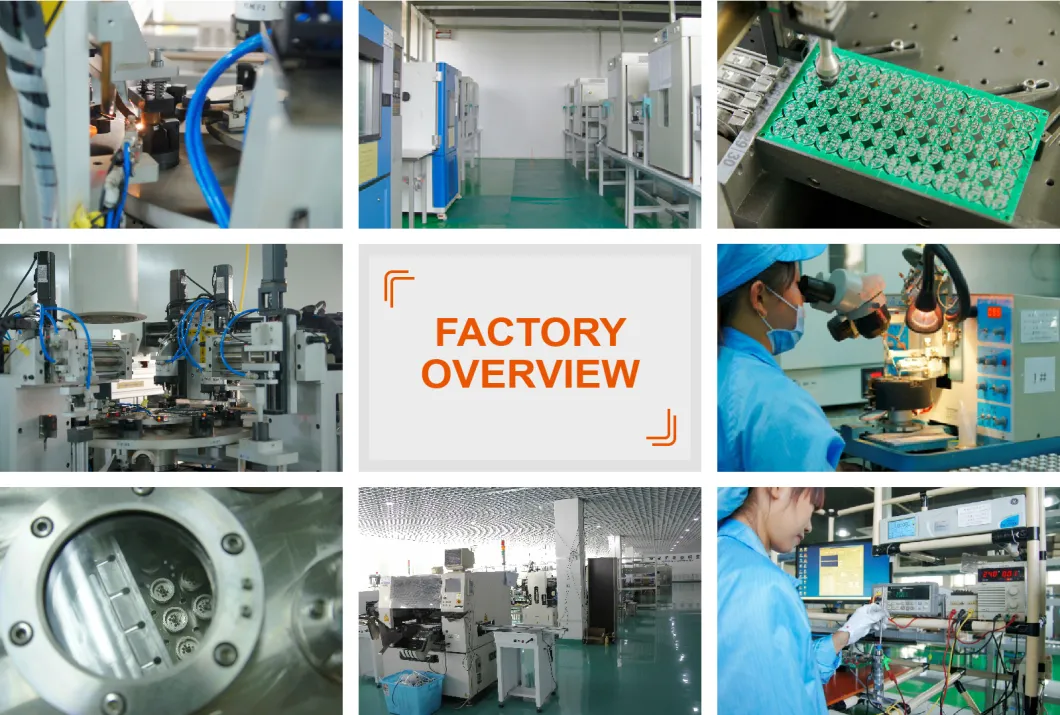

About Us:
Absolute Pressure Sensor Pressure Transducer Pressure Control PCM10


Absolute Pressure Sensor Pressure Transducer Pressure Control PCM10

Absolute Pressure Sensor Pressure Transducer Pressure Control PCM10

Certifications:
Absolute Pressure Sensor Pressure Transducer Pressure Control PCM10


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on Pressure Sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.


Contact us if you need more details on Piezoresistive Pressure Sensor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pressure transducerPressure Transmitter. If these products fail to match your need, please contact us and we would like to provide relevant information.
