Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring

Product Description

Overview
PCM560 is a high-precision intelligent digital Pressure Gauge. It has a high-precision sensor and displays pressure accurately in real time. It has advantages of high precision and good long term stability.
PCM560 is equipped with a large size LCD, featuring with functions of zero clearing, backlight, on/off button, units switching and low pressure alarm. It is convenient to install and easy to operate.
The housing and connector of PCM560 are made of stainless steel 304 with excellent vibration resistance. It can be used to measure gas, liquid, oil and other non-corrosive medium of stainless steel.
PCM560 is applicable to portable Pressure Measurement and equipment supporting and calibration fields.

Features
4 digits LCD showing pressure accurately in real time, easy for observation
Various pressure units, zero clearing, backlight, on/off functions
Battery powered, low-power design keeping working for 12 months
All stainless steel shell, small size, low cost

Application
Machinery and electronics
Supporting equipment of instruments
Pressure laboratory
Mechanical engineering automation

Performance parameters

Pressure range0~160kPa…25MPa
Pressure referenceGauge pressure, Sealed gauge pressure
Accuracy1%FS
Backlight colorWhite
Operating temp.-10~70ºC
Compensated temp.0~60ºC
Electric protectionAnti electromagnetic interference design
Sampling frequency2/sec
Overpressure150%FS
Long term stability±0.5%FS/year (typical)
Battery2 Triple A batteries
MaterialStainless steel for shell, 316L for isolation diaphragm
Medium compatibilityAll media compatible with stainless steel 316

Drawing

Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring

Pressure port


Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring
Note: Common threads are M20×1.5, G1/4, G1/2, M14×1.5, NPT1/4 and NPT1/2. Special threads can be customized for batch order.

Pressure range selection

Pressure range codePressure referencePressure rangeOverpressureBurst pressureRemark
160kGG160kPa100%FS200%FS
250kGG250kPa100%FS200%FS
400kGG400kPa100%FS200%FS
600kGG600kPa100%FS200%FS
1MGG1MPa100%FS250%FS
1.6MSS1.6MPa100%FS250%FS
2.5MSS2.5MPa100%FS250%FS
4MSS4MPa100%FS250%FS
6MSS6MPa100%FS200%FS
10MSS10MPa100%FS200%FS
16MSS16MPa100%FS200%FS
25MSS25MPa100%FS200%FS
Note: G stands for gauge pressure, S, sealed gauge pressure.

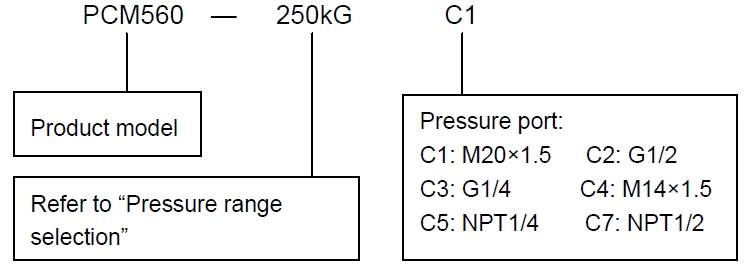

How to order


Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring

Example: PCM560-250kGC1
Refer to product model PCM560, with pressure range 0~250kPa, gauge pressure, and pressure port M20×1.5.
About Us:
Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring
Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring

Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring

Certifications:
Stainless Steel Digital Pressure Gauge 0.25% Accuracy for Oil Air Water Measuring

FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on Pressure Sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
