Intelligent Pressure Gauge for Pipeline Oil Air Pressure Measurement
Product Description
PCM580 High Precision Intelligent Digital Pressure Gauge
Overview
PCM580 is a high-precision intelligent digital pressure gauge. It has a high-precision sensor and displays pressure accurately in real time. It has advantages of high precision and good long term stability.
PCM580 is equipped with a large size LCD, featuring with functions of zero clearing, backlight, on/off button, units switching and low pressure alarm. It is convenient to install and easy to operate.
The housing and connector of PCM580 are made of stainless steel 304 with excellent vibration resistance. It can be used to measure gas, liquid, oil and other non-corrosive medium of stainless steel.
PCM580 is applicable to portable Pressure Measurement and equipment supporting and calibration fields.
Features
4 digits LCD showing pressure accurately in real time, easy for observation
Various pressure units, zero clearing, backlight, on/off functions
Battery powered, low-power design, keeping working for 12 months
High-precision Pressure Sensor adopted
Application
Machinery and electronics
Supporting equipment of instruments
Pressure laboratory
Mechanical engineering automation
| Performance parameters | |
| Pressure range | -100kPa…0~10kPa…100MPa |
| Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure |
| Accuracy | 0.5%FS |
| Backlight color | Blue |
| Operating temp. | -10~70ºC |
| Compensated temp. | 0~60ºC |
| Electric protection | Anti electromagnetic interference design |
| Sampling frequency | 5/sec |
| Overpressure | 150%FS |
| Long term stability | ±0.2%FS/year (typical) |
| Supply battery | 2 Triple A batteries |
| Material | Stainless steel for shell, 316L for isolation diaphragm |
| Medium compatibility | All media compatible with stainless steel 316 |

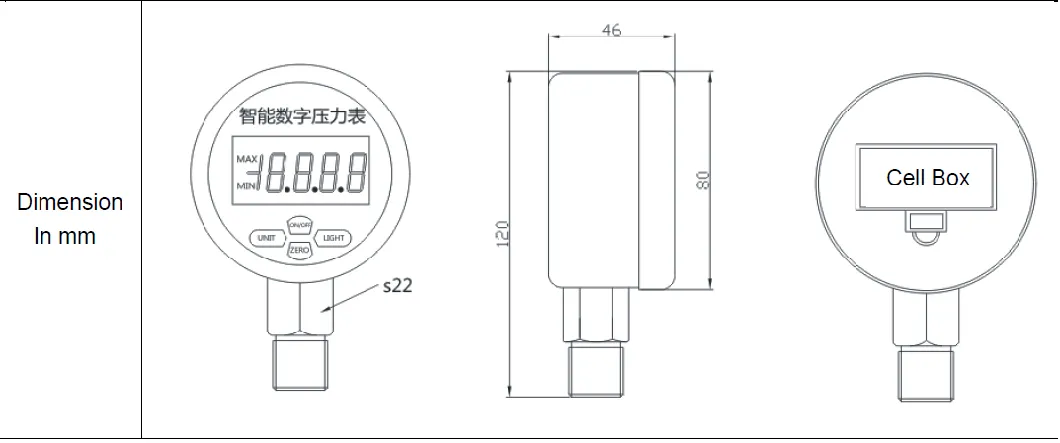

| Structure & dimensions |

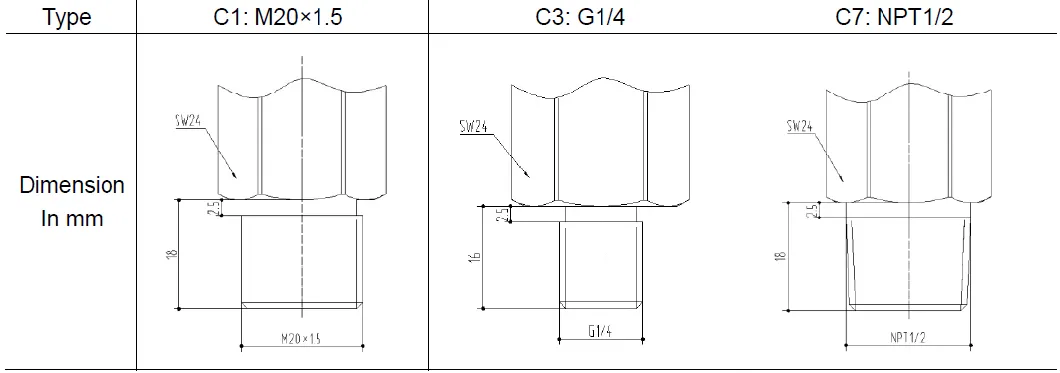

| Pressure port |
Note: Common threads are M20×1.5, G1/4, G1/2, M14×1.5, NPT1/4 and NPT1/2. Special threads can be customized for batch order.
| Pressure range selection | |||||
| Pressure range code | Pressure reference | Pressure range | Overpressure | Burst pressure | Remark |
| N1k | G | -100kPa~0 | 200%FS | 400%FS | |
| NP100k | G | ±100kPa | 200%FS | 500%FS | |
| N4k | G | -100~160kPa | 200%FS | 500%FS | |
| N5k | G | -100~250kPa | 200%FS | 500%FS | |
| N6k | G | -100~400kPa | 200%FS | 500%FS | |
| N7k | G | -100~600kPa | 200%FS | 500%FS | |
| N8M | G | -0.1~1MPa | 200%FS | 500%FS | |
| N9M | G | -0.1~1.6MPa | 200%FS | 500%FS | |
| 5kG | G | 5kPa | 200%FS | 500%FS | |
| 10kG | G | 10kPa | 300%FS | 600%FS | |
| 16kG | G | 16kPa | 300%FS | 600%FS | |
| 25kG | G | 25kPa | 300%FS | 600%FS | |
| 40kG | G | 40kPa | 300%FS | 600%FS | |
| 60kG | G | 60kPa | 300%FS | 600%FS | |
| 100kG | G | 100kPa | 200%FS | 500%FS | |
| 160kG | G | 160kPa | 200%FS | 500%FS | |
| 250kG | G | 250kPa | 200%FS | 500%FS | |
| 400kG | G | 400kPa | 200%FS | 500%FS | |
| 600kG | G | 600kPa | 200%FS | 500%FS | |
| 1MG | G | 1MPa | 200%FS | 500%FS | |
| 1.6MS | S | 1.6MPa | 200%FS | 500%FS | |
| 2.5MS | S | 2.5MPa | 200%FS | 500%FS | |
| 4MS | S | 4MPa | 200%FS | 400%FS | |
| 6MS | S | 6MPa | 200%FS | 400%FS | |
| 10MS | S | 10MPa | 200%FS | 400%FS | |
| 16MS | S | 16MPa | 200%FS | 400%FS | |
| 25MS | S | 25MPa | 150%FS | 300%FS | |
| 40MS | S | 40MPa | 150%FS | 300%FS | |
| 60MS | S | 60MPa | 150%FS | 300%FS | |
| 100MS | S | 100MPa | 150%FS | 300%FS | |
Note: G stands for gauge pressure, S, sealed gauge pressure.

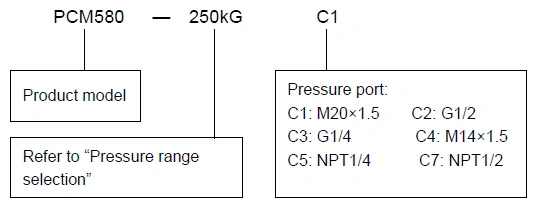

| How to order |
Example: PCM580-250kGC1
Refer to product model PCM580, with pressure range 0~250kPa, gauge pressure, and pressure port M20×1.5.
About Us:
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
