Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor

Product Description

PCMPT01&PCMPT02&PCMPT03 Series Economical Melt Pressure transducer

Features
signal output:4~20mA,0~ 10V,0~5V

accuracy grade:±1.0%F.S

special diaphragm coating

IP65 ingress protection

80% internal calibration



Applications

injection molding industry
chemical fiber industry



Product overview
PCMPT01&PCMPT02&PCMPT03 series economical melt Pressure Transmitter series is specially designed for Pressure Measurement at high temperature in the injection molding industry,special diaphrgam and highly anti-abrasive coating of which enable it to work normally at high temperature up to 320ºC.This series is installed in the manner of standard threaded connection and has many advantages like high stability and long service life.


 performance parameters

Pressure range0….1.5 MPa to 0….15MPa
Pressure referenceGauge pressure, Absolute pressure, Sealed gauge pressure
Output4~20mA,0~10V,0~5V
Input Voltage24VDC(12~36VDC)
Input Voltage10(6~12V)DC
Accuracy Grade±1.0%F.S
Pressure Unipsi,bar,MPa
Overload Capacity1.5 times rated pressure
Zero Temp Drift0.005MPa/ºC
Electrical Environmental Temp-20~85ºC
Bridge Resistance350Ω
Diaphragm Materia15-5PH
Diaphragm Temp320ºC

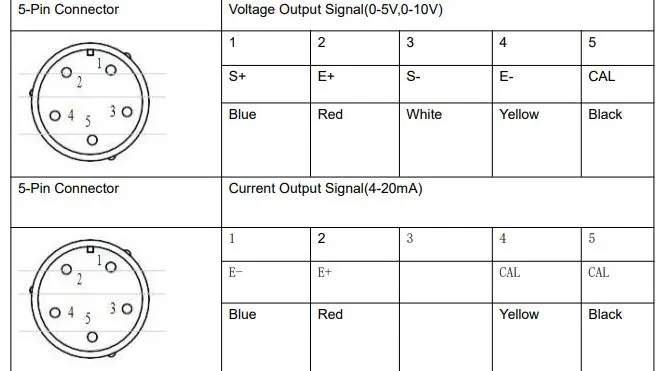

E-Connection5-pin standard aviation connector
Mounting Torque40N.m Max
Process ConnectionM14×1.5
Protection LevelIP65
Temp MeasuremenE,J,K type or Pt100



Structure and dimensions


Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure SensorPcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor




How to order

Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor

Ordering tips:
1 Pressure range can be selected higher or lower than actual conditions but should be within ±30%FS.
2 Pressure reference consists of gauge pressure, absolute pressure and sealed gauge pressure.
  • Gauge pressure is based on the current atmospheric pressure. Generally, it refers to the measurement of pressure which is greater than the current atmospheric pressure. Negative pressure is a special case of gauge pressure. It refers that there is such working condition that the pressure of work site is lower than the current atmospheric pressure.
  • Absolute pressure is based on vacuum.
  • As for sealed gauge pressure, PC10 uses absolute pressure die for gauge pressure product based on the atmospheric pressure of production site. For pressure range above 6MPa, gauge pressure cannot be selected, but only sealed gauge pressure.
3 Confirm the maximum overload of the applied system, which should be less than the overload protection limit of the sensor, otherwise it will affect the product life or even damage the product.
4 The commonly used compensation of the product is 1.5mA constant current compensation. Suggest selecting the option with priority.
5 The material and process for manufacturing negative Pressure Sensors are different from those of positive pressure sensors. So gauge pressure sensors cannot be used as substitute of negative pressure sensors.
6 For special requirements on performance parameters and functions of the product, please contact us.

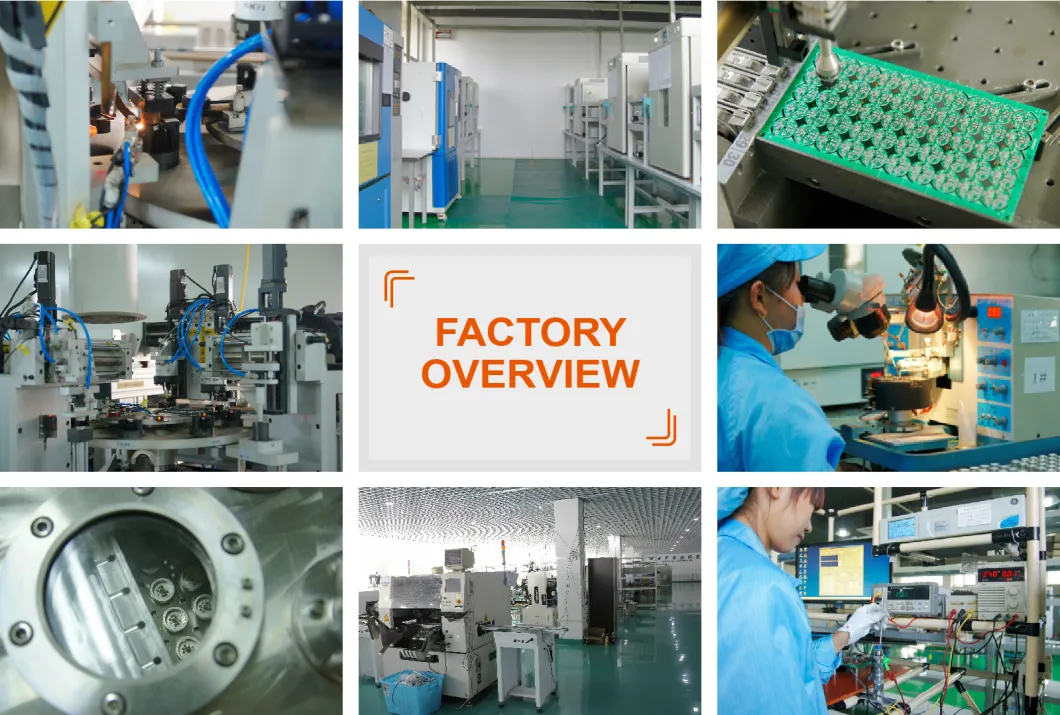

About Us:
Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor


Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor


Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor

Certifications:
Pcmpt01 Economical Melt Pressure Transducer High Temperature Melt Pressure Sensor


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on Pressure Sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.



Contact us if you need more details on Melt pressure sensor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Melt Pressure Transducer、Water Melt Pressure Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
