Submersible Level Sensor Piezoresistive Siliocn Pressure Sensor Hart RS485 PCM260
PCM260 Submersible Level Transmitter accurately measures static pressure of the liquid proportional to the level depth using high performance piezoresistive diffused silicon Pressure Sensor as the measuring element. The result is converted to standard current or voltage signal output through signal conditioning circuit, establishing the linear corresponding relation between the output signal and liquid depth to complete the measurement of the liquid depth. The product has advantages of high precision and small volume. Submerse it directly into liquid, the height between the end of the transmitter to the liquid surface is measured easily. The product is applicable to the measurement and control of the liquid level in the petroleum, chemical industry, power plant, urban water supply and hydrological exploration fields.
PCM260 has passed long-term aging and stability screening with stable and reliable performance and can be used in harsh outdoor environment. Meanwhile, it can display liquid level on site. Zero shift and full scale span shift available.
Piezoresistive diffused silicon pressure sensor
Probe insertion measurement method, easy to install
For Level Measurement
Multiple protective structure design, high protection ability
Variety of styles, suitable for various industrial applications
Anti-corrosion stainless steel material adopted, suitable for many occasions
Static pressure level
|Pressure range||0~0.5m…20m…200m H2O|

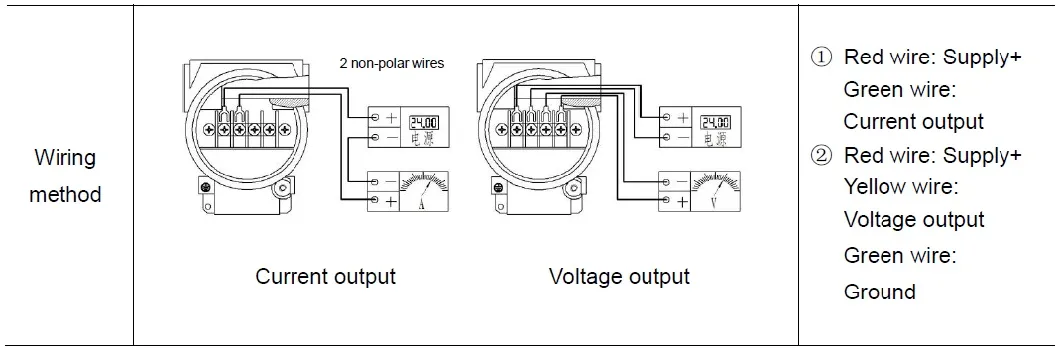

|Supply & output||4~20mA (18~36V, 24V typical)|
|4~20mA with display (12~36V, 24V typical)|
|1~5V, 0~5V, 0.5~4.5V, 0~10V (12~32V, 24V typical)|
|Compensated temp.||0m~10m H2O: 0ºC~60ºC|
|10m~200m H2O: -10ºC~70ºC|
|Zero temp. coefficient||±1.5%FS (within compensated temp.)|
|Span temp. coefficient||±1.5%FS (within compensated temp.)|
|Mechanical vibration||20g (20~5000HZ)|
|Response time||≤1ms (Up to 90%FS)|
|Long term stability||±0.2%FS/year|
|Material||Low copper aluminum alloy for junction box; stainless steel for level probe|
|Polyurethane wire for cable|
|Medium compatibility||All kinds of media compatible with stainless steel 304|
|Installation instructions (for reference only)|

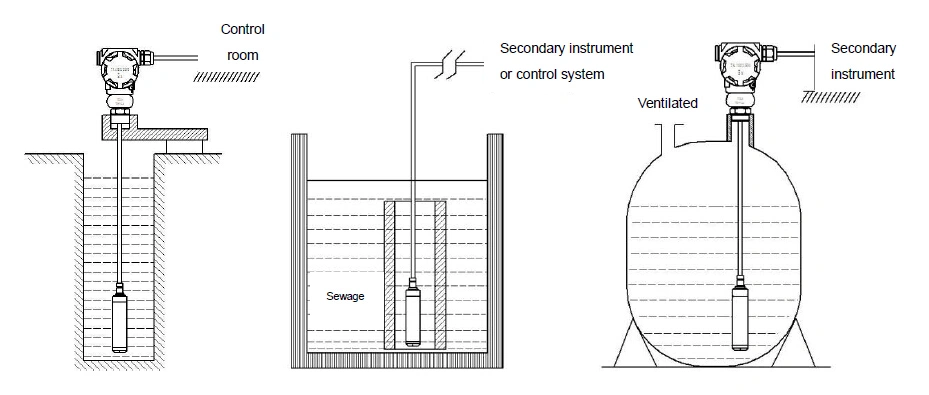

1. Installation in still water (deep wells, pools, liquid tanks, etc.)
1) When measuring the level of stationary fluid in an open container, place the level transmitter vertically into the bottom of the container and secure the cable connecting the transmitter to the junction box at the opening of the container.
2) When the medium viscosity is relatively large (such as sewage pool), casing or bracket can be installed to ensure that the transmitter can be put into the bottom of the container.
3) When doing an open-air installation, the terminal box of the transmitter should be placed in a ventilated and dry place to avoid direct exposure to light and rain, which may cause the shell temperature to be too high or water to get inside and damage the internal circuit board.

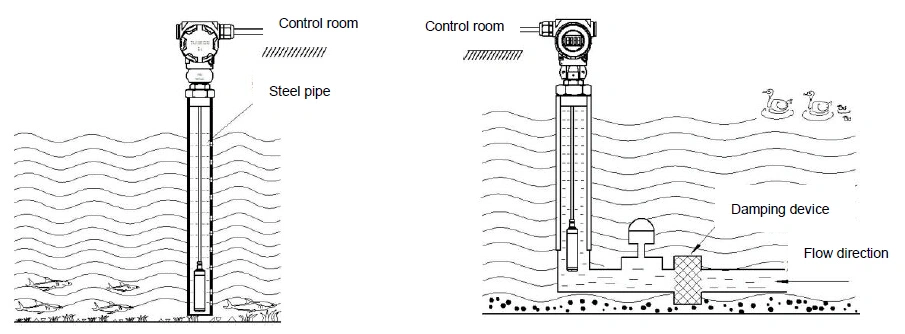

2. Installation in moving water (rivers, lakes, etc.)
1) When measuring the water level in flowing water, when the medium fluctuates greatly, a steel pipe can be inserted in the water channel with an inner diameter of about 50 cm. Make several holes of about Φ5 in diameter on the side of the immersed pipe opposite to the flow direction to allow water to enter the pipe and fix the cable and junction box at the outlet of the pipe.
2) When the medium of the water channel fluctuates greatly or the sediment is large, a damping device can be installed to filter the sediment, eliminate the adverse effects of dynamic pressure and wave and ensure the measurement accuracy.
3) When installing the product in lightening intensified area, please indicate "Lightning Protection" when placing an order. Meanwhile, it is recommended that users install lightning protection devices at the site and ensure that the product and power supply are reliably grounded to reduce damage to the transmitter caused by lightning.
|Pressure range selection|
|Pressure range code||Pressure reference||Pressure range||Overpressure||Burst pressure||Remark|
|Cable length selection|
|Pressure range code||Mapping relation||Code||Definition|
|0.5mi||L1.5 L2 L3 L5 L6 L8 L10 L12 L15 L18 L20 L25||L1.5||Cable length 1.5m|
|1mi||L1.5 L2 L3 L5 L6 L8 L10 L12 L15 L18 L20 L25||L2||Cable length 2m|
|1.5mi||L2 L3 L5 L6 L8 L10 L12 L15 L18 L20 L25||L3||Cable length 3m|
|2mi||L3 L5 L6 L8 L10 L12 L15 L18 L20 L25||L5||Cable length 5m|
|2.5mi||L3 L5 L6 L8 L10 L12 L15 L18 L20 L25||L6||Cable length 6m|
|3mi||L5 L6 L8 L10 L12 L15 L18 L20 L25||L8||Cable length 8m|
|3.5mi||L5 L6 L8 L10 L12 L15 L18 L20 L25||L10||Cable length 10m|
|4mi||L5 L6 L8 L10 L12 L15 L18 L20 L25||L12||Cable length 12m|
|4.5mi||L5 L6 L8 L10 L12 L15 L18 L20 L25||L15||Cable length 15m|
|5mi||L5 L6 L8 L10 L12 L15 L18 L20 L25||L18||Cable length 18m|
|5.5mi||L6 L8 L10 L12 L15 L18 L20 L25||L20||Cable length 20m|
|6mi||L8 L10 L12 L15 L18 L20 L25||L25||Cable length 25m|
|6.5mi||L8 L10 L12 L15 L18 L20 L25||For exceeding length, order as accessory.|
|7mi||L8 L10 L12 L15 L18 L20 L25|
|8mi||L10 L12 L15 L18 L20 L25|
|9mi||L10 L12 L15 L18 L20 L25|
|10mi||L10 L12 L15 L18 L20 L25|
|12mi||L15 L18 L20 L25|
|15mi||L15 L18 L20 L25|
|How to order|
Refer to product model PCM260, with pressure range 1.5m H2O, output signal 4~20mA (24VDC supply), electrical connection cable outlet, cable length 1.5m.
1. The part of cable exceeding the standard cable length
2. PCM260 anti-blocking protective cover (with filter)
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
