Water Level Measurement Pressure Sensor in Oil Can Tank Awimming Pool

Product Description

PCM260 Submersible Level Transmitter

Features
Piezoresistive diffused silicon Pressure Sensor
Probe insertion measurement method, easy to install
For Level Measurement
Multiple protective structure design, high protection ability
LCD option
Variety of styles, suitable for various industrial applications
Anti-corrosion stainless steel material adopted, suitable for many occasions

Applications
Static pressure level
Liquid tanks
Sewage
Industrial water
Pools
Wells
Rivers
Seawater
Lakes

Product overview

PCM260 Submersible Level Transmitter accurately measures static pressure of the liquid proportional to the level depth using high performance piezoresistive diffused silicon pressure sensor as the measuring element. The result is converted to standard current or voltage signal output through signal conditioning circuit, establishing the linear corresponding relation between the output signal and liquid depth to complete the measurement of the liquid depth. The product has advantages of high precision and small volume. Submerse it directly into liquid, the height between the end of the transmitter to the liquid surface is measured easily. The product is applicable to the measurement and control of the liquid level in the petroleum, chemical industry, power plant, urban water supply and hydrological exploration fields.
PCM260 has passed long-term aging and stability screening with stable and reliable performance and can be used in harsh outdoor environment. Meanwhile, it can display liquid level on site. Zero shift and full scale span shift available.


Performance parameters

Pressure range0~0.5m…20m…200m H2O
Supply & output4~20mA (18~36V, 24V typical)
4~20mA with display (12~36V, 24V typical)
1~5V, 0~5V, 0.5~4.5V, 0~10V (12~32V, 24V typical)
Operating temp.-20ºC~85ºC
Medium temp.-10ºC~70ºC
Storage temp.-40ºC~125ºC
Compensated temp.0m~10m H2O: 0ºC~60ºC
10m~200m H2O: -10ºC~70ºC
Zero temp. coefficient±1.5%FS (within compensated temp.)
Span temp. coefficient±1.5%FS (within compensated temp.)
Overpressure200%FS~300%FS
Mechanical vibration20g (20~5000HZ)
Shock100g (11ms)
Accuracy0.5%FS
Insulation100MΩ/250VDC
Response time≤1ms (Up to 90%FS)
Long term stability±0.2%FS/year
ProtectionIP68
MaterialLow copper aluminum alloy for junction box; stainless steel for level probe
Polyurethane wire for cable
Medium compatibilityAll kinds of media compatible with stainless steel 304

Electrical connection


Water Level Measurement Pressure Sensor in Oil Can Tank Awimming Pool

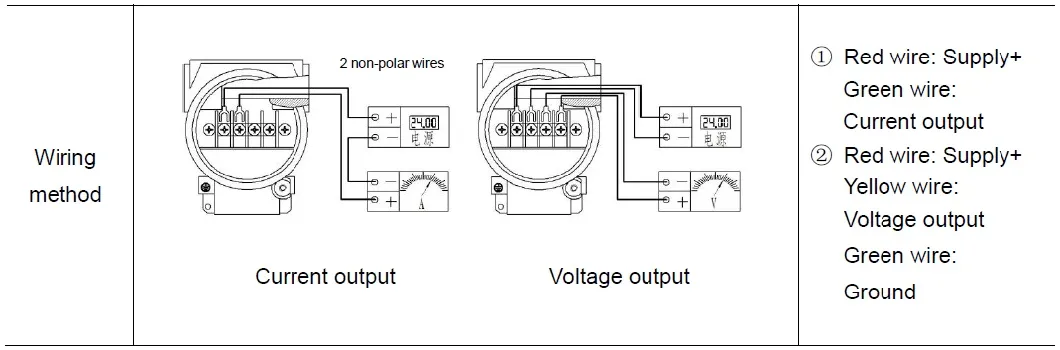

Wiring method


Water Level Measurement Pressure Sensor in Oil Can Tank Awimming Pool

Installation instructions (for reference only)


1. Installation in still water (deep wells, pools, liquid tanks, etc.)

Water Level Measurement Pressure Sensor in Oil Can Tank Awimming Pool
Installation tips:
1) When measuring the level of stationary fluid in an open container, place the level transmitter vertically into the bottom of the container and secure the cable connecting the transmitter to the junction box at the opening of the container.
2) When the medium viscosity is relatively large (such as sewage pool), casing or bracket can be installed to ensure that the transmitter can be put into the bottom of the container.
3) When doing an open-air installation, the terminal box of the transmitter should be placed in a ventilated and dry place to avoid direct exposure to light and rain, which may cause the shell temperature to be too high or water to get inside and damage the internal circuit board.

2. Installation in moving water (rivers, lakes, etc.)

Water Level Measurement Pressure Sensor in Oil Can Tank Awimming Pool

Installation tips:
1) When measuring the water level in flowing water, when the medium fluctuates greatly, a steel pipe can be inserted in the water channel with an inner diameter of about 50 cm. Make several holes of about Φ5 in diameter on the side of the immersed pipe opposite to the flow direction to allow water to enter the pipe and fix the cable and junction box at the outlet of the pipe.
2) When the medium of the water channel fluctuates greatly or the sediment is large, a damping device can be installed to filter the sediment, eliminate the adverse effects of dynamic pressure and wave and ensure the measurement accuracy.
3) When installing the product in lightening intensified area, please indicate "Lightning Protection" when placing an order. Meanwhile, it is recommended that users install lightning protection devices at the site and ensure that the product and power supply are reliably grounded to reduce damage to the transmitter caused by lightning.

Pressure range selection

Pressure range codePressure referencePressure rangeOverpressureBurst pressureRemark
0.5miG0.5m H2O300%FS600%FS
1miG1m H2O300%FS600%FS
1.5miG1.5m H2O300%FS600%FS
2miG2m H2O300%FS600%FS
2.5miG2.5m H2O300%FS600%FS
3miG3m H2O300%FS600%FS
3.5miG3.5m H2O300%FS600%FS
4miG4m H2O300%FS600%FS
4.5miG4.5m H2O300%FS600%FS
5miG5m H2O300%FS600%FS
5.5miG5.5m H2O300%FS600%FS
6miG6m H2O300%FS600%FS
6.5miG6.5m H2O300%FS600%FS
7miG7m H2O300%FS600%FS
8miG8m H2O300%FS600%FS
9miG9m H2O300%FS600%FS
10miG10m H2O200%FS500%FS
12miG12m H2O200%FS500%FS
15miG15m H2O200%FS500%FS
18miG18m H2O200%FS500%FS
20miG20m H2O200%FS500%FS

Cable length selection

Pressure range codeMapping relationCodeDefinition
0.5miL1.5 L2 L3 L5 L6 L8 L10 L12 L15 L18 L20 L25L1.5Cable length 1.5m
1miL1.5 L2 L3 L5 L6 L8 L10 L12 L15 L18 L20 L25L2Cable length 2m
1.5miL2 L3 L5 L6 L8 L10 L12 L15 L18 L20 L25L3Cable length 3m
2miL3 L5 L6 L8 L10 L12 L15 L18 L20 L25L5Cable length 5m
2.5miL3 L5 L6 L8 L10 L12 L15 L18 L20 L25L6Cable length 6m
3miL5 L6 L8 L10 L12 L15 L18 L20 L25L8Cable length 8m
3.5miL5 L6 L8 L10 L12 L15 L18 L20 L25L10Cable length 10m
4miL5 L6 L8 L10 L12 L15 L18 L20 L25L12Cable length 12m
4.5miL5 L6 L8 L10 L12 L15 L18 L20 L25L15Cable length 15m
5miL5 L6 L8 L10 L12 L15 L18 L20 L25L18Cable length 18m
5.5miL6 L8 L10 L12 L15 L18 L20 L25L20Cable length 20m
6miL8 L10 L12 L15 L18 L20 L25L25Cable length 25m
6.5miL8 L10 L12 L15 L18 L20 L25For exceeding length, order as accessory.
7miL8 L10 L12 L15 L18 L20 L25
8miL10 L12 L15 L18 L20 L25
9miL10 L12 L15 L18 L20 L25
10miL10 L12 L15 L18 L20 L25
12miL15 L18 L20 L25
15miL15 L18 L20 L25
18miL20 L25
20miL25

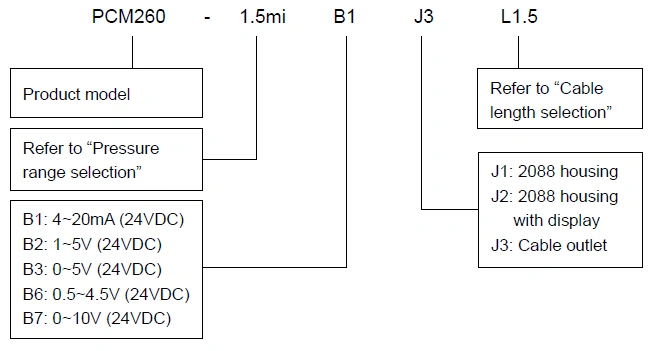

How to order


Water Level Measurement Pressure Sensor in Oil Can Tank Awimming Pool

Example: PCM260-1.5miB1J3L1.5
Refer to product model PCM260, with pressure range 1.5m H2O, output signal 4~20mA (24VDC supply), electrical connection cable outlet, cable length 1.5m.

Optional accessories
1. The part of cable exceeding the standard cable length
2. PCM260 anti-blocking protective cover (with filter)
