Home > Products > Transmitter Accessories > DIN43650A Connector > Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650

Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650

Product Description

Features
New design based on DIN43650 standard
Meet European quality requirements
Competitive price
Appropriate built-in circuit selectable
Anti-vibration design of screw thread

Specifications

HousingBlack: PA+30%GF
Contact holder,
gland nut
PA+30%FV/PA+30%GF
Cable diameter5-10mm
Contact materialCu Zn
Max current16A
Operating current10A
Max wire cross-section1.5mm2
Insulation classC-VDE 0110
Working temp.-40~125ºC
Protection levelIP67

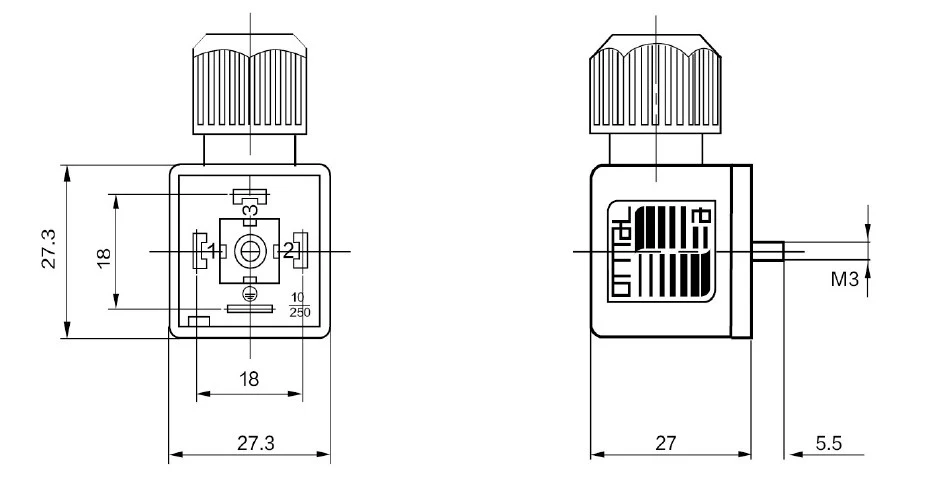

Drawing

Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650
About Us:
Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650


Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650


Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650

Certifications:
Pressure Sensor Header Sensor Connector Hirschmann Connector DIN Connector IP67 DIN43650


FAQ:
1.    Q: Are you manufacturer or trading company?
        A: We are manufacturer which focuses on Pressure Sensor for 33 years.
2.    Q: What international certificates do you have?
        A: ISO9001, CE, RoHS Certificated.
3.    Q: What is your production capacity?
        A: We produced 1500000 pieces pressure sensor in year 2017.
4.    Q: What is the lead time of your product?
        A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
       Note: lead time may vary base on different products. Please contact us for detailed lead time.
5.    Q: What is the warranty of your products?
       A: Our warranty time is 18 months after shipment.
6.    Q: Do you provide customized products?
       A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.

Contact us if you need more details on DIN43650A. We are ready to answer your questions on packaging, logistics, certification or any other aspects about DIN43650A Connector、DIN43650 Connector. If these products fail to match your need, please contact us and we would like to provide relevant information.
