Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor

Product Description

                PC90D Monocrystalline Silicon Differential pressure sensor

Features

Imported ultra-high stability differential pressure die
High accuracy and excellent stability
Static pressure error within ±0.1%FS/10MPa
Patented double overpressure protection diaphragm design
Unilateral overpressure limit of up to 40MPa
Constant current/constant voltage excitation
316L stainless steel all welded integrated structure
Positive and negative pressure completely symmetrical, no O-ring inside, with
small flange kit

Applications
Differential Pressure Transmitter core component
Differential pressure flow transmitter core component

Overview

PC90D Monocrystalline Silicon Differential Pressure Sensor is a kind of differential pressure sensor designed with overpressure protection function. The differential pressure sensitive core element adopts high performance piezoresistive silicon chip, which is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Diaphragm of different materials isolates measuring medium and differential pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive media. Differential pressure sensor converts the measured differential pressure signal into millivolt voltage signal proportional to its linearity by external constant current or constant voltage excitation.

                                                        Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor


Performance parameters

SupplyConstant voltage / constant current
Operating temp.-40ºC-85ºC
Medium temp.-50ºC-125ºC
Output voltage60~140mV
Zero temp. coefficient±0.05%FS/ºC
Full scale span temp. impact-0.2±0.03%FS/ºC
Temp. hysteresis±0.05%FS
Pressure hysteresis±0.025%FS
Long-term drift±0.05%FS/Year
Nonlinearity±0.1%FS(Typical)
Static pressure impact±0.1%FS/10MPa
Diaphragm materialStainless steel 316L

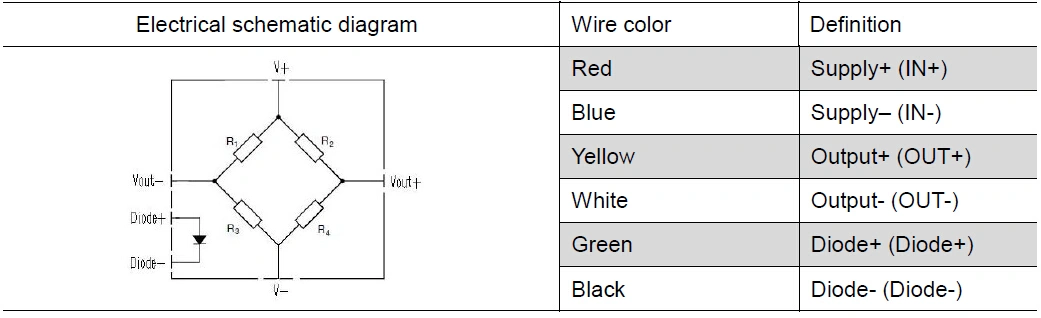

Electrical connection


Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor

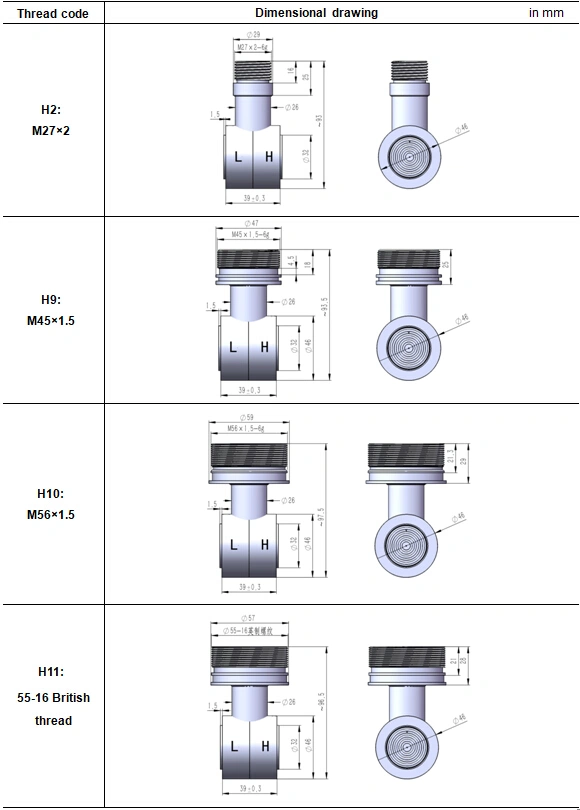

Structure & dimensions


Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor

Pressure range selection

CodePressure rangeUnilateral overpressureStatic pressure
6k0-600Pa~6kPa16MPa25MPa
40k0-1kPa~40kPa16MPa40MPa
100k0-1.5kPa~100kPa16MPa40MPa
250k0-2.5kPa~250kPa16MPa40MPa
1M0-10kPa~1MPa16MPa40MPa
3M0-30kPa~3MPa16MPa40MPa

Accessories


Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor

How to order


Piezoresistive Pressure Transducer 4-20mA High Accuracy Differential Pressure Sensor

Example: PC90D-100kH11M1R1
Refer to product model PC90D, with pressure range 0-1.5Pa~100kPa, thread 55-16 British thread, diaphragm material stainless steel 316L, and filling oil silicon oil.

Ordering tips:
Accessories need to be ordered separately.
