Oil Pressure Sensor Monocrystalline Silicon Pressure Transducer Analog Output
Product Description

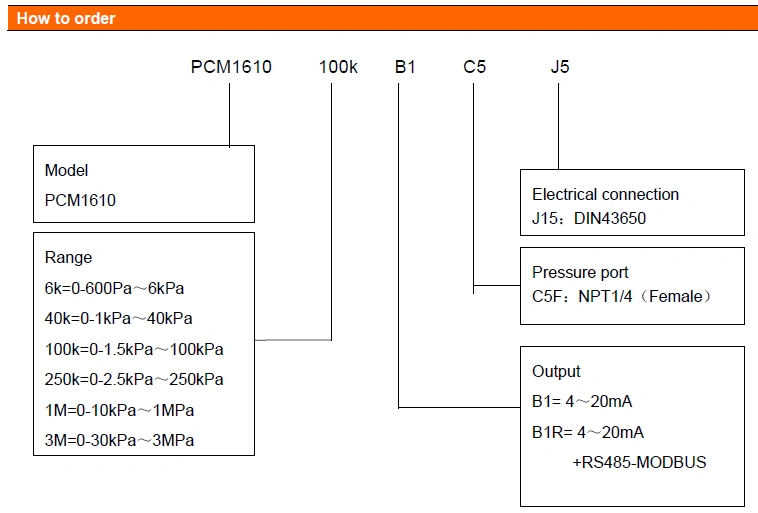

PCM1610 Monocrystalline Silicon Differential Pressure Transmitter
Imported ultra-high stability differential pressure die
High accuracy and excellent stability
Static pressure error within ±0.1%FS/10MPa
Patented double overpressure protection diaphragm design
Unilateral overpressure limit of up to 40MPa
High accuracy Temperature Sensor inside
Intelligent temperature compensation
Positive and negative pressure completely symmetrical, no O-ring inside
All welded integrated structure
About Us:
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on Pressure Sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
Imported ultra-high stability differential pressure die
High accuracy and excellent stability
Static pressure error within ±0.1%FS/10MPa
Patented double overpressure protection diaphragm design
Unilateral overpressure limit of up to 40MPa
High accuracy Temperature Sensor inside
Intelligent temperature compensation
Positive and negative pressure completely symmetrical, no O-ring inside
All welded integrated structure
| Performance parameters | |
| Pressure range | 0~2kPa…3MPa |
| Supply/output | 4~20mA, 4~20mA+RS485-MODBUS(10~28VDC) |
| Operating temp. | -40ºC-85ºC |
| Storage temp. | -40ºC~125ºC |
| Compensation temp. | -20~80ºC |
| Temp. coefficient | 1.5%(-20~80ºC) |
| Overpressure | 16MPa |
| Maximum static pressure | 40MPa |
| Mechanical vibration | 20g(20~5000Hz) |
| Shock | 100g(11ms) |
| Overall accuracy | 0.5%FS |
| Insulation resistance | 100MΩ/250VDC(200MΩ/250VDC) |
| Response time | ≤1ms(up to 90%FS) |
| Long term stability | ±0.1%FS/year |
| IP protection | IP65 |
| Material | Stainless steel |
| Medium compatible | Various medium compatible with 304 stainless steel |
About Us:
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on Pressure Sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
Product Categories : Pressure Measurement sesnors & transducers > Differential pressure sensor
